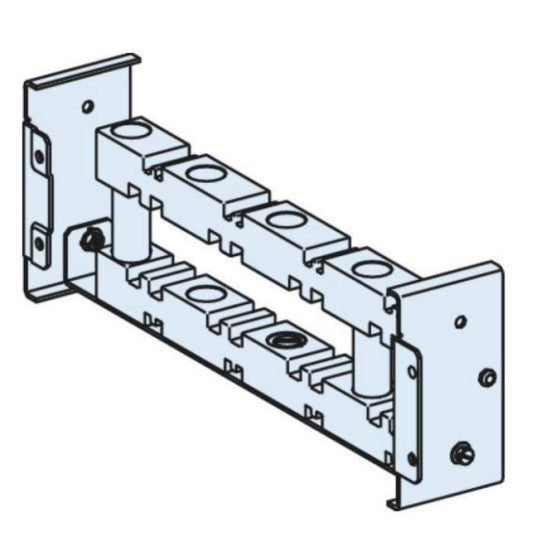

Schneider Electric Spacial 2 hor. busbar sup. In 3200A 10 mm bars. Bars distance 115mm. For 800mm widths - NSYBHS800L
Schneider Electric Spacial 2 hor. busbar sup. In 3200A 10 mm bars. Bars distance 115mm. For 800mm widths - NSYBHS800L

2 hor. busbar sup. In 3200A 10 mm bars. Bars distance 115mm. For 800mm widths - NSYBHS800L

SKU : NSYBHS800L

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

2 hor. busbar sup. In 3200A 10 mm bars. Bars distance 115mm. For 800mm widths - NSYBHS800L

DESCRIPTION

Range: Spacial
Accessory / separate part category: Busbar accessory
Product or component type: Busbar support
Device application: Multi-purposePrisma application
Enclosure nominal dimensions: -
Mounting location: On structure of enclosure
Mounting support: Vertical uprights
Busbar position: Horizontal
Range compatibility: Linergy BSSpacial SFPPrisma PH
Cubicle-device connection: Linergy BS horizontal busbar - fixed
Device composition: fixing elements1 metal support2 insulating bar support
Quantity per set: Set of 1
Material: Bar support: plasticMetal support: steel
Fixing mode: By fixing element
Height: 59.25 mm
Width: 710 mm fixing centers:
Depth: 39 mm
[In] rated current: 3200 A
Sustainable offer status: Green Premium product
REACh Regulation: Free of Substances of Very High Concern above the threshold
REACh free of SVHC: Yes
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
RoHS exemption information: Yes
China RoHS Regulation: Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure: ENVPEP110923EN
Code EAN: 3606480211447
