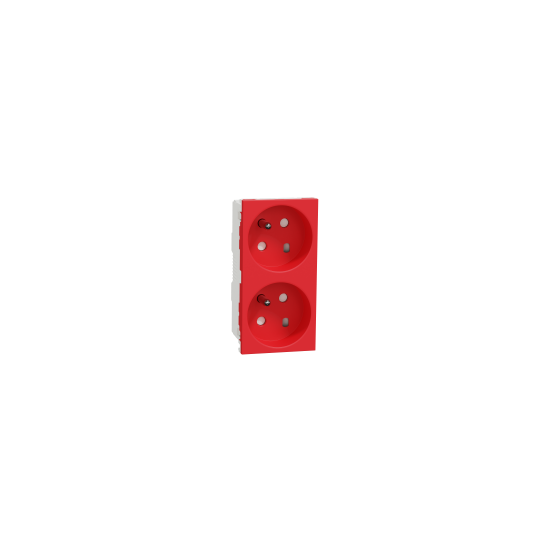

Schneider Electric Unica 2 Socket-outlet, New Unica, 2P + E tamperproof, 16A, French, shutter, screwless terminals, IP3x, antibacterial, red - NU306103
Schneider Electric Unica 2 Socket-outlet, New Unica, 2P + E tamperproof, 16A, French, shutter, screwless terminals, IP3x, antibacterial, red - NU306103

2 Socket-outlet, New Unica, 2P + E tamperproof, 16A, French, shutter, screwless terminals, IP3x, antibacterial, red - NU306103

SKU : NU306103

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

2 Socket-outlet, New Unica, 2P + E tamperproof, 16A, French, shutter, screwless terminals, IP3x, antibacterial, red - NU306103

DESCRIPTION

Range: New Unica
Range of product: New Unica
Device application: Power supply
Product or component type: Socket-outlet
Device presentation: Mechanism
Socket number: 2
Outlet poles configuration: 2P + E tamperproof
Outlet standard: French
Outlet standard description: Pin earth
Ground lug position: 45° ground lug
Main colour tint: Red
Main material: PC (polycarbonate)
Cover type: With shutter
Device mounting: Flush
Rated current: 16 A
[Ue] rated operational voltage: 250 V
Network type: AC
Network frequency: 50/60 Hz
Number of modules: 4 modules
Fixing mode: Clip-in
Colour tint: Red (Pantone 1795C)
Connections - terminals: Screwless terminals
Cable cross section: 0...2.5 mm² cable(s), 2 - cable stiffness: flexible0...2.5 mm² cable(s), 2 - cable stiffness: rigid
Minimum load breaking capacity: 100 operations 1.25 In and 1.1 Un, cos phi = 0.6
Electrical durability: 10000 cycles, cos phi = 0.8
Insulation resistance: > 5 MOhm at 500 V
Dielectric strength: 2000 V
Material: PC: mechanism cover
Surface finish: Glossy
Quantity per set: Set of 1 without packaging
Standards: IEC 60884-1NF C 61-314
Product certifications: NF
Embedding depth: 30 mm
Depth: 39.4 mm
Width: 45 mm
Height: 90 mm
Net weight: 0.075 kg
Surface treatment: Antibacterial
Targeted channel: Professional
Resistance to chemical agents: Resistant to alcohol (70 %)Resistant to alcohol (96 %)Resistant to A-Lactic AcidResistant to diluted quaternary ammoniumResistant to diluted bleachResistant to diluted ammoniaResistant to soapy waterResistant to crystal cleanerResistant to hydrogen peroxide 10 volumesResistant to hexane
Ambient air temperature for operation: -5...35 °C
Ambient air temperature for storage: -5...50 °C
IK degree of protection: IK04
IP degree of protection: IP3x
Environmental characteristic: AcetoneBleachUV resistantPetrolOilAlcoholWindow-cleaning fluidLiquid soap
Sustainable offer status: Green Premium productCradle to Cradle
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606489454319
