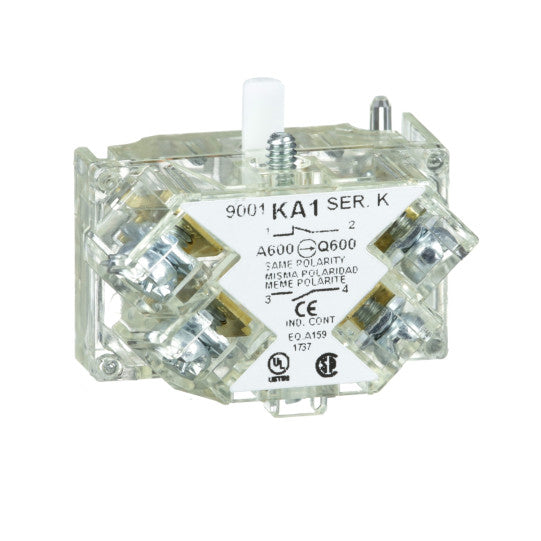

Schneider Electric SCHNEIDER 30MM CONTACT BLOCK 1C/O - 9001KA1
Schneider Electric SCHNEIDER 30MM CONTACT BLOCK 1C/O - 9001KA1

30MM CONTACT BLOCK 1C/O - 9001KA1

SKU : 9001KA1

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

30MM CONTACT BLOCK 1C/O - 9001KA1

DESCRIPTION

Range of product: Harmony 9001K
Product or component type: Contact block with protected terminals
Device short name: 9001K
Product weight: 0.027 kg
Contacts type and composition: 1 C/O
Contact operation: Standard
Positive opening: Without
Connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted
Contacts material: Silver alloy contacts
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Ui] rated insulation voltage: 250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
[Ie] rated operational current: 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
[Icm] rated short-circuit making capacity: 12 kA at 600 V AC-15, 7200 VA15 kA at 480 V AC-15, 7200 VA30 kA at 240 V AC-15, 7200 VA60 kA at 120 V AC-15, 7200 VA0.1 kA at 600 V DC-13, 7200 VA0.27 kA at 250 V DC-13, 7200 VA0.55 kA at 125 V DC-13
Rated breaking capacity: 3 kA at 240 V AC-15, 720 VA6 kA at 120 V AC-15, 720 VA1.2 kA at 600 V AC-15, 720 VA1.5 kA at 480 V AC-15, 720 VA0.1 kA at 600 V DC-130.27 kA at 250 V DC-130.55 kA at 125 V DC-13
Compatibility code: 9001K
Protective treatment: TC
Ambient air temperature for storage: -40...70 °C
Ambient air temperature for operation: -25...70 °C
Electrical shock protection class: Class II conforming to IEC 61140
IP degree of protection: IP20 conforming to IEC 60529
Standards: EN/IEC 60947-5-1JIS C 4520UL 508EN/IEC 60947-1JIS C 852CSA C22.2 No 14EN/IEC 60947-5-4
Product certifications: NEMAUL 508
Vibration resistance: 7 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389110917840
