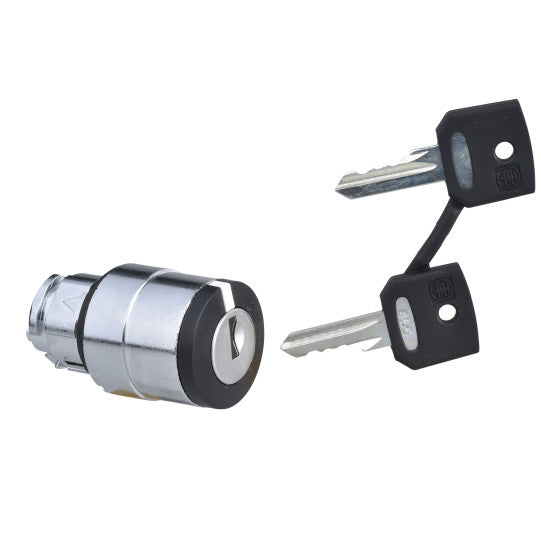

Schneider Electric SCHNEIDER 3POS SPRING RET KEY SELECTOR - ZB4BG08
Schneider Electric SCHNEIDER 3POS SPRING RET KEY SELECTOR - ZB4BG08

3POS SPRING RET KEY SELECTOR - ZB4BG08

SKU : ZB4BG08

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

3POS SPRING RET KEY SELECTOR - ZB4BG08

DESCRIPTION

Range of product: Harmony XB4
Product or component type: Head for key selector switch
Device short name: ZB4
Bezel material: Chromium plated metal
Mounting diameter: 22 mm
Head type: Standard
Sale per indivisible quantity: 1
Shape of signaling unit head: Round
Return: Right to centre
Operator profile: Black key switch
Type of operator: Spring return
Operator position information: 3 positions +/- 45°
Type of keylock: Ronis 455
Key withdrawal position: Left
CAD overall width: 29 mm
CAD overall height: 29 mm
CAD overall depth: 72 mm
Product weight: 0.098 kg
Resistance to high pressure washer: 7000000 Pa at 55 °C, distance
Mechanical durability: 1000000 cycles
Electrical composition code: C3 for C4 for C5 for C6 for C7 for C8 for C11 for
Device presentation: Basic element
Main group: Selector switch
Group of product: Key switch
Cap/operator or lens colour: Black
Customizable: No
Customizable: 0
Compatibility code: ZB4
Protective treatment: TH
Ambient air temperature for storage: -40...70 °C
Ambient air temperature for operation: -40...70 °C
Overvoltage category: Class I conforming to IEC 60536
IP degree of protection: IP66 conforming to IEC 60529IP67IP69IP69K
NEMA degree of protection: NEMA 13NEMA 4X
IK degree of protection: IK06 with keyhole cover ZBGP conforming to IEC 50102
Standards: EN/IEC 60947-5-1UL 508EN/IEC 60947-1EN/IEC 60947-5-4GB 14048.5CSA C22.2 No 14EN/IEC 60947-5-5
Product certifications: DNVGLCSALROS (Lloyds register of shipping)UL listedBV
Vibration resistance: 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3389110889321
