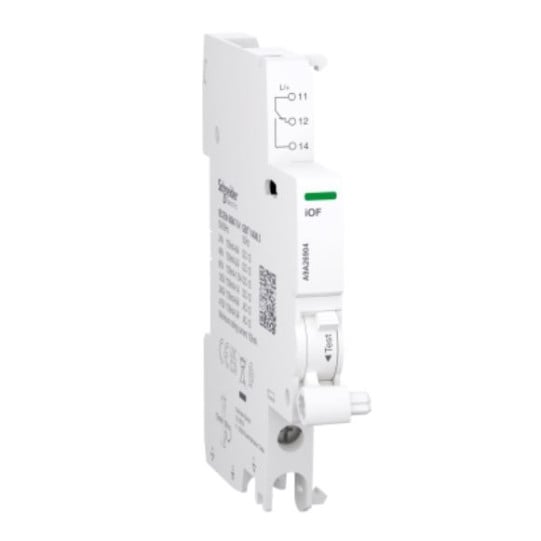

Schneider Electric Acti 9 A9A26904 - Acti9 Auxiliary Contact iOF 1OC 100mA to 6A, AC-DC - Schneider Electric
Schneider Electric Acti 9 A9A26904 - Acti9 Auxiliary Contact iOF 1OC 100mA to 6A, AC-DC - Schneider Electric

A9A26904 - Acti9 Auxiliary Contact iOF 1OC 100mA to 6A, AC-DC - Schneider Electric

SKU : A9A26904

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9A26904 - Acti9 Auxiliary Contact iOF 1OC 100mA to 6A, AC-DC - Schneider Electric

DESCRIPTION

Range: Acti9
Product or component type: OC contact
Device short name: iOF
Signal contacts composition: 1 C/O
[In] rated current: 0.1...6 A at 24...240 V, AC 50/60 Hz 0.1...3 A at 415 V, AC 50/60 Hz 0.1...6 A at 24 V, DC 0.1...2 A at 48 V, DC 0.1...1.5 A at 60 V, DC 0.1...1 A at 130 V, DC
9 mm pitches: 1
Range compatibility: Acti9 (Acti9 iC60)Acti9 (Acti9 iC60 RCBO)Acti9 (Acti9 iID)Acti9 (Acti9 ARA)Acti9 (Acti9 RCA)Acti9 (Acti9 iDPN Vigi)Acti9 (Acti9 iC40)Acti9 (Acti9 iSW-NA)
[Ui] rated insulation voltage: 500 V
[Uimp] rated impulse withstand voltage: 4 kV
Mounting mode: Clip-on
Mounting location: Left side of circuit-breaker
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top: YES
Height: 86 mm
Width: 9 mm
Depth: 73 mm
Net weight: 32 g
Colour: White
Connections - terminals: Screw clamp terminal (bottom) 1 cable(s) 1...4 mm² - rigidScrew clamp terminal (bottom) 1 cable(s) 0.5...2.5 mm² - flexibleScrew clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigidScrew clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length: 10 mm
Tightening torque: 1 N.m bottom
Product compatibility: Single terminal
Compatibility code: IOF
Market segment: Small commercialBuildings
Standards: EN/IEC 60947-5-1GB/T 14048.5
Product certifications: CEUKCA
Quality labels: EACCCCCMIM
IP degree of protection: IP20
Pollution degree: 3
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606486115145
