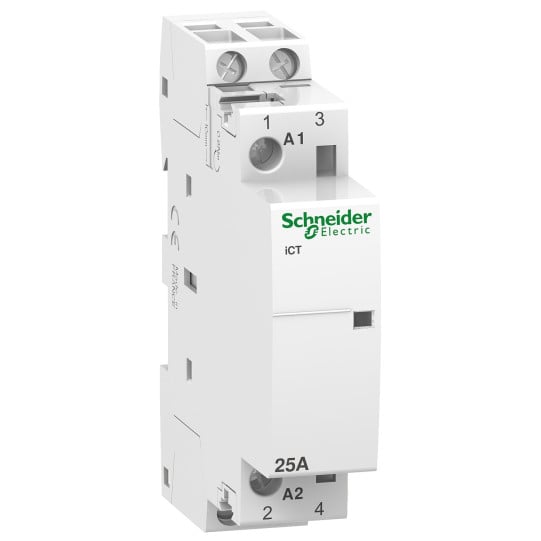

Schneider Electric Acti 9 A9C24732 - Acti9, iCT auxiliary contactor 2P - 25A - 2NO - 230-240VAC - Schneider Electric
Schneider Electric Acti 9 A9C24732 - Acti9, iCT auxiliary contactor 2P - 25A - 2NO - 230-240VAC - Schneider Electric

A9C24732 - Acti9, iCT auxiliary contactor 2P - 25A - 2NO - 230-240VAC - Schneider Electric

SKU : A9C24732

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9C24732 - Acti9, iCT auxiliary contactor 2P - 25A - 2NO - 230-240VAC - Schneider Electric

DESCRIPTION

Range of product: ICT
Range: Acti9
Product name: Acti9 iCT
Product or component type: Contactor
Device short name: ICT
Device application: Motor-heating-lighting
Poles description: 2P
[Ie] rated operational current: 25 A AC-7A8.5 A AC-7B
Pole contact composition: 2 NO
Network type: AC
Control type: Remote control
[Uc] control circuit voltage: 230...240 V AC 50 Hz
Network frequency: 50 Hz
[Ue] rated operational voltage: 250 V AC 50 Hz
Maximum power: 1.2 W at 250 V AC
[Ui] rated insulation voltage: 500 V AC 50 Hz
[Uimp] rated impulse withstand voltage: 4 kV
Control signal type: Maintained
Switching frequency: 100 switching operations/day
Local signalling: Action indicator
Hold-in power consumption in VA: 2.7 VA
Inrush power in VA: 9.2 VA
Mounting mode: Clip-on
Mounting support: 35 mm symmetrical DIN rail
9 mm pitches: 2
Height: 81 mm
Width: 18 mm
Depth: 68.5 mm
Colour: White
Mechanical durability: 1000000 cycles
Electrical durability: 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B30000 cycles IEC/EN 61095 50 Hz AC-7C100000 cycles EN/IEC 60947-4-1 50 Hz AC-130000 cycles EN/IEC 60947-4-1 50 Hz AC-330000 cycles EN/IEC 60947-4-1 50 Hz AC-5a30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b
Connections - terminals: Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigidPower circuit: tunnel type terminals1 cable(s) 1...4 mm² flexiblePower circuit: tunnel type terminals1 cable(s) 1.5...6 mm² rigidControl circuit: tunnel type terminals1 cable(s) 1.5...2.5 mm² rigidControl circuit: tunnel type terminals2 cable(s) 1.5...2.5 mm² flexible
Tightening torque: Control circuit: 0.8 N.mPower circuit: 0.8 N.m
Product compatibility: IACTcIACTsIACTpIATEt
Compatibility code: ICT
Standards: IEC/EN 61095
Noise level: 30 dB
Heat dissipation: 0.9 W
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 2
Tropicalisation: 2 conforming to EN 60947-4-12 conforming to EN 610952 conforming to IEC 1095
Relative humidity: 95 % at 55 °C
Operating altitude: 2000 m
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...70 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480097164
