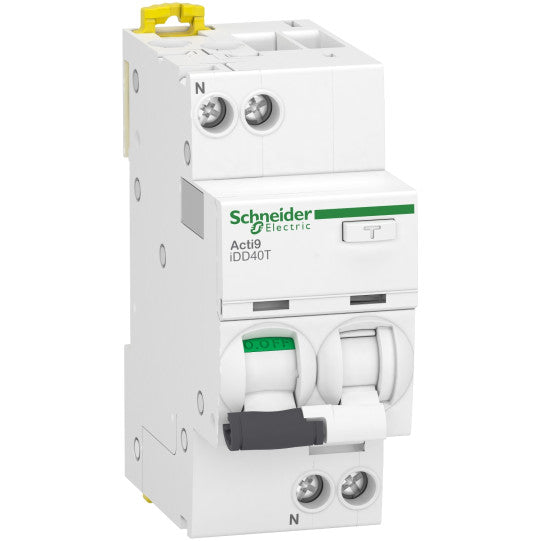

Schneider Electric Acti9 A9DA2610 Schneider - Acti9 iDD40T - Resetable residual current circuit breaker - 1PN C 10A 6kA 30mA type AC
Schneider Electric Acti9 A9DA2610 Schneider - Acti9 iDD40T - Resetable residual current circuit breaker - 1PN C 10A 6kA 30mA type AC

A9DA2610 Schneider - Acti9 iDD40T - Resetable residual current circuit breaker - 1PN C 10A 6kA 30mA type AC

SKU : A9DA2610

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9DA2610 Schneider - Acti9 iDD40T - Resetable residual current circuit breaker - 1PN C 10A 6kA 30mA type AC

DESCRIPTION

Range: Acti9
Product name: Acti9 iDD40
Product or component type: Residual current breaker with overcurrent protection (RCBO)
Device short name: IDD40T
Device application: Distribution
Poles description: 1P + N
Number of protected poles: 1
Neutral position: Left
[In] rated current: 10 A
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Breaking capacity: 4500 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-16 kA Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Quality labels: NF
Device location in system: Outgoer
Network frequency: 50 Hz
[Ue] rated operational voltage: 230 V AC 50 Hz
Magnetic tripping limit: 5...10 x In
Residual current tripping technology: Voltage independent
[Ics] rated service breaking capacity: 4500 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1
Rated breaking and making capacity: Idm 4500 A at 230 V AC 50 Hz conforming to EN 61009-2-1Idm 500 A at 230 V AC 50 Hz conforming to IEC 61009-2-1
Limitation class: 3 conforming to EN/IEC 61009-2-1
[Ui] rated insulation voltage: 400 V AC 50 Hz
[Uimp] rated impulse withstand voltage: 4 kV
Contact position indicator: Yes
Control type: Toggle
Local signalling: ON/OFF indicationTrip indicator
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: tooth
9 mm pitches: 4
Height: 85 mm
Width: 36 mm
Depth: 73 mm
Product weight: 210 g
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 20000 cycles
Locking options description: Padlocking deviceSealable
Connections - terminals: Tunnel type terminals top or bottom 1...16 mm² rigidTunnel type terminals top or bottom 1...10 mm² flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 2 N.m top or bottom
Earth-leakage protection: Integrated
Standards: EN/IEC 60947-2EN/IEC 61009-2-1
Product certifications: CE
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
Relative humidity: 95 % at 55 °C
Operating altitude: 2000 m
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606481382306
