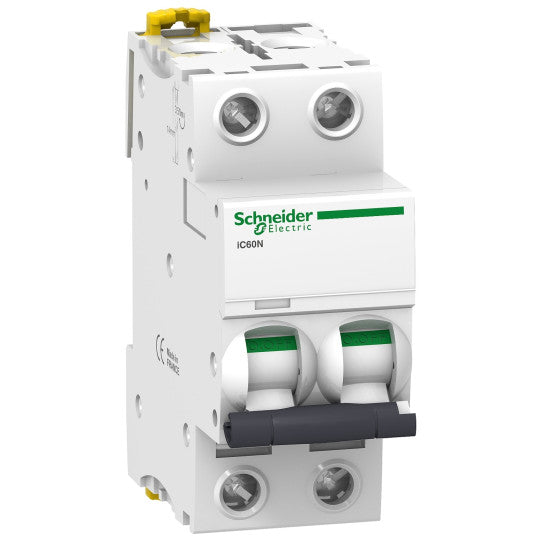

Schneider Electric Acti 9 A9F77216 - Acti9, iC60N circuit breaker 2P 16A C curve - Schneider Electric
Schneider Electric Acti 9 A9F77216 - Acti9, iC60N circuit breaker 2P 16A C curve - Schneider Electric

A9F77216 - Acti9, iC60N circuit breaker 2P 16A C curve - Schneider Electric

SKU : A9F77216

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9F77216 - Acti9, iC60N circuit breaker 2P 16A C curve - Schneider Electric

DESCRIPTION

Device application: Distribution
Range: Acti 9
Range of product: IC60
Product name: Acti 9 iC60
Product or component type: Miniature circuit-breaker
Device short name: IC60N
Poles description: 2P
Number of protected poles: 2
[In] rated current: 16 A
Network type: ACDC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity code: N
Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-136 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-210 kA Icu at 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-220 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-26 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-236 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category: Category A conforming to EN 60947-2Category A conforming to IEC 60947-2
Suitability for isolation: Yes conforming to EN 60898-1Yes conforming to EN 60947-2Yes conforming to IEC 60898-1Yes conforming to IEC 60947-2
Standards: IEC 60898-1EN 60947-2EN 60898-1IEC 60947-2
Quality labels: NF
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 220...240 V AC 50/60 Hz400 V AC 50/60 Hz380...415 V AC 50/60 Hz440 V AC 50/60 Hz12...133 V AC 50/60 Hz72...125 V DC
Magnetic tripping limit: 8 x In +/- 20 %
[Ics] rated service breaking capacity: 15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC10 kA 100 % conforming to EN 60947-2 - 72...125 V DC
Limitation class: 3 conforming to EN 60898-13 conforming to IEC 60898-1
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN 60947-2500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-26 kV conforming to IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: Trip indicator
Mounting mode: Fixed
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: YES
9 mm pitches: 4
Height: 85 mm
Width: 36 mm
Depth: 78.5 mm
Product weight: 0.25 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Connections - terminals: Single terminal (top or bottom) 1...25 mm² rigidSingle terminal (top or bottom) 1...16 mm² flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 2 N.m top or bottom
Earth-leakage protection: Separate block
Compatibility code: IC60
IP degree of protection: IP20 conforming to IEC 60529IP20 conforming to EN 60529
Pollution degree: 3 conforming to EN 60947-23 conforming to IEC 60947-2
Overvoltage category: IV
Tropicalisation: 2 conforming to IEC 60068-1
Relative humidity: 95 % at 55 °C
Operating altitude: 0...2000 m
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480094132
