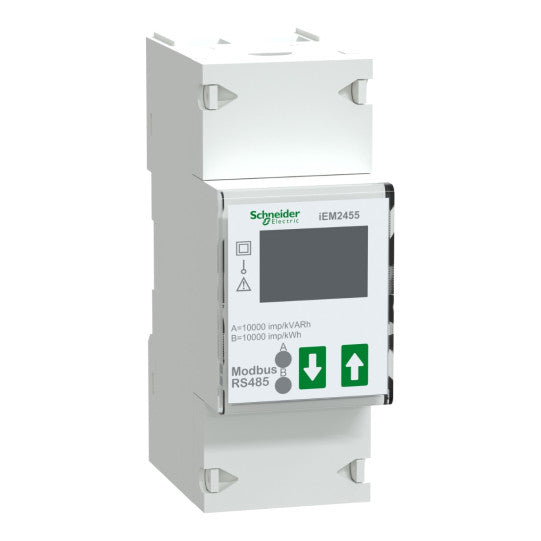

Schneider Electric Acti 9 A9MEM2455 - Modular single phase power meter iEM2455 - 230V - 100A with communication Modbus
Schneider Electric Acti 9 A9MEM2455 - Modular single phase power meter iEM2455 - 230V - 100A with communication Modbus

A9MEM2455 - Modular single phase power meter iEM2455 - 230V - 100A with communication Modbus

SKU : A9MEM2455

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9MEM2455 - Modular single phase power meter iEM2455 - 230V - 100A with communication Modbus

DESCRIPTION

  • Range: Acti 9
  • Product Name: Acti 9 iEM2000
  • Short name of unit: iEM2455
  • Product Function: Energy Meter

Complementary

  • Pole Description: 1P + N
  • Measurement type: Active and reactive energy Active and reactive power Apparent power
  • Power factor: Current
  • Voltage: Frequency
  • Type of counting: Active and reactive energy
  • Application: Sub-billing Multi-Prime
  • Accuracy class: Class 1 active energy comply with IEC 62053-21 Class 2 reactive energy comply with IEC 62053-23 Class B active energy comply with EN 50470-3
  • Input Type: Direct Input
  • Rated current: 100 A
  • Nominal voltage:  230 V - 15...10%
  • Network frequency:  50 Hz 60 Hz
  • Type of technology: Electronics
  • Display Type: LCD Display
  • Sampling rate: 32 samples/cycle
  • Measuring current: 5…100 A
  • Two digit displays: 7
  • Maximum value measured: 99999.99 kWh 999999.9 kWh
  • Tariff entry: Tariff (2)
  • Communication port protocol: Modbus RTU at 1200...38400 bauds even/ odd or none
  • Support communication port: Screw terminals: RS485
  • Local signage: Red LED: measurement and activity 0.01/0.1/1/10/100/1000/2000 or 10000 p/kWh
  • Logical inputs: 0
  • Output voltage: 5...27 V DC@100 mA
  • Pulse length: 5...32 ms
  • Supply voltage: 195...253 V AC 50 Hz
  • Maximum VA power consumption: 1 VA at 240 V AC
  • Installation Mode: Snap-in
  • Mounting bracket: DIN rail
  • Connection mode: Power circuit: 1 2.5 screw-down terminal blocks… 35 mm² cable(s)
  • Communication: screw-in terminals (top) 1 2.5 mm² cable(s)
  • Standards: IEC 62052-11 IEC 62053-21 IEC 61010-1
  • Product certifications: MID conforming to EN 50470-1 MID conforming to EN 50470-3 CE

Environment

  • Degree of protection IP: IP51 front face: conforming to IEC 60529 IP20 envelope
  • Degree of pollution: 2
  • Ambient air temperature for operation: -25… 55°C
  • Ambient air temperature in storage: -30… 70°C
  • Operating altitude < 2000 m
  • Relative humidity: 0…95%
  • Colour: White
  • 9 mm pitch: 4
  • Width:  35.8 mm
  • Height: 96.7 mm
  • Depth: 63 mm
Code EAN: 3606482187177
Rappels:

This Schneider A9MEM2455 product is an Acti9 iEM series energy meter.
