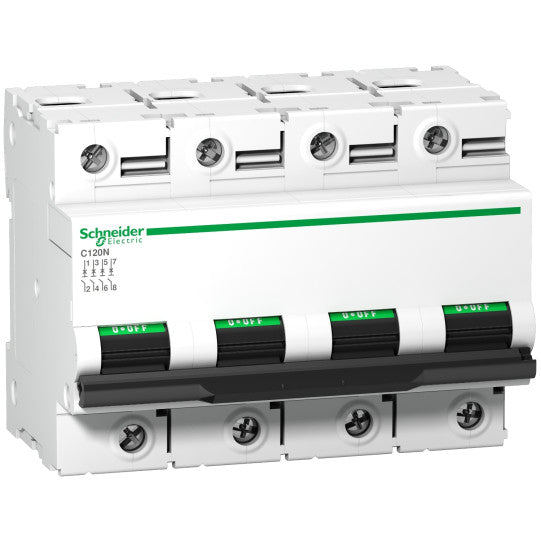

Schneider Electric Acti 9 A9N18373 - C120N 4P 80 A modular circuit breaker, C curve, 10 kA - Schneider Electric
Schneider Electric Acti 9 A9N18373 - C120N 4P 80 A modular circuit breaker, C curve, 10 kA - Schneider Electric

A9N18373 - C120N 4P 80 A modular circuit breaker, C curve, 10 kA - Schneider Electric

SKU : A9N18373

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9N18373 - C120N 4P 80 A modular circuit breaker, C curve, 10 kA - Schneider Electric

DESCRIPTION

Range of product: C120
Range: Acti 9
Product name: C120
Product or component type: Miniature circuit-breaker
Device short name: C120N
Device application: Distribution
Poles description: 4P
Number of protected poles: 4
Neutral position: Left
[In] rated current: 80 A at 30 °C
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity code: N
Breaking capacity: 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-16 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-220 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-210 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-210 kA Icu at
Suitability for isolation: Yes conforming to IEC 60947-2
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 380...415 V AC 50/60 Hz220...240 V AC 50/60 Hz440 V AC 50/60 Hz230...400 V AC 50/60 Hz
Magnetic tripping limit: 5...10 x In
[Ics] rated service breaking capacity: 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz10 kA 100 % conforming to EN/IEC 60947-2 -
Limitation class: 3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: ON/OFF indication
Mounting mode: Clip-on
Mounting support: 35 mm symmetrical DIN rail
Comb busbar and distribution block compatibility: YES
9 mm pitches: 12
Height: 81 mm
Width: 108 mm
Depth: 73 mm
Product weight: 0.82 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 5000 cycles conforming to IEC 60947-2
Connections - terminals: Tunnel type terminals1...50 mm² rigidTunnel type terminals1.5...35 mm² flexible
Wire stripping length: 15 mm
Tightening torque: 3.5 N.m
Earth-leakage protection: Separate block
Compatibility code: C120
Market segment: Small commercialResidential
Standards: EN/IEC 60898-1EN/IEC 60947-2
Product certifications: EAC
IP degree of protection: IP20 conforming to IEC 60529
Pollution degree: 3 conforming to IEC 60947-2
Overvoltage category: IV
Tropicalisation: 2 conforming to IEC 60068-1
Relative humidity: 95 % at 55 °C
Operating altitude: 2000 m
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480379444
