Schneider Electric Acti9 A9P22616 - Schneider Acti9 iDT40T miniature circuit breaker - 1P+N - 16A - C curve - 4500A/6kA
Schneider Electric Acti9 A9P22616 - Schneider Acti9 iDT40T miniature circuit breaker - 1P+N - 16A - C curve - 4500A/6kA

A9P22616 - Schneider Acti9 iDT40T miniature circuit breaker - 1P+N - 16A - C curve - 4500A/6kA

SKU : A9Y62625

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9P22616 - Schneider Acti9 iDT40T miniature circuit breaker - 1P+N - 16A - C curve - 4500A/6kA

DESCRIPTION

Range: Acti9
Product or component type: Add-on residual current devices

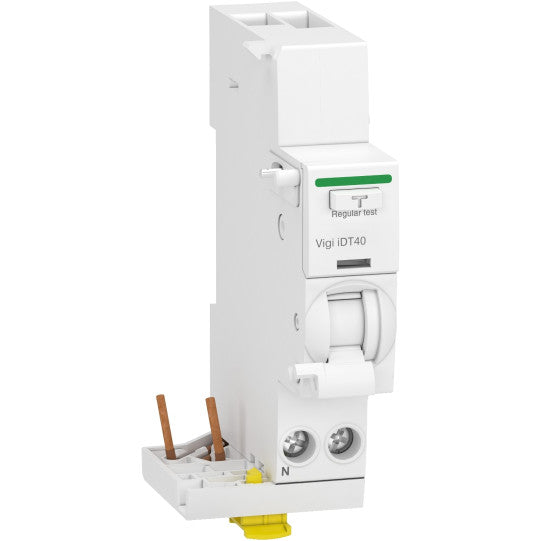

Device short name: Vigi iDT40
Range compatibility: Acti9 iDT40
Poles description: 1P + N
Neutral position: Left
[In] rated current: 25 A
Network type: AC
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Product certifications: CE
Quality labels: NF
Device location in system: Outgoer
Network frequency: 50 Hz
[Ue] rated operational voltage: 230 V AC 50 Hz
Residual current tripping technology: Voltage independent
[Ui] rated insulation voltage: 400 V AC 50 Hz conforming to EN/IEC 61009-2-1
[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 61009-2-1
Local signalling: Fault indication
Mounting mode: Clip-on
Mounting support: DIN rail
Electrical connection to mcb: By screws
9 mm pitches: 2
Height: 91 mm
Width: 36 mm
Depth: 74 mm
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Connections - terminals: Tunnel type terminal bottom 1...16 mm² rigidTunnel type terminal bottom 1...10 mm² flexible
Wire stripping length: 14 mm for bottom connection
Tightening torque: 2 N.m bottom
Standards: EN/IEC 61009-2-1
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3 conforming to EN/IEC 61009-2-1
Relative humidity: 95 % at 55 °C
Operating altitude: 2000 m
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606481383358
