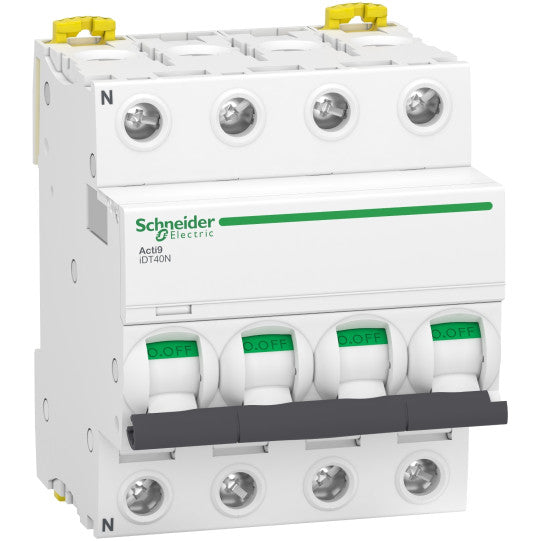

Schneider Electric Acti9 A9P24463 - Acti9 iDT40N - Miniature circuit breaker - 4P - 63A - C curve - 6000A/10kA - Schneider
Schneider Electric Acti9 A9P24463 - Acti9 iDT40N - Miniature circuit breaker - 4P - 63A - C curve - 6000A/10kA - Schneider

A9P24463 - Acti9 iDT40N - Miniature circuit breaker - 4P - 63A - C curve - 6000A/10kA - Schneider

SKU : A9P24463

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9P24463 - Acti9 iDT40N - Miniature circuit breaker - 4P - 63A - C curve - 6000A/10kA - Schneider

DESCRIPTION

Range: Acti9
Product name: Acti9 iDT40
Product or component type: Miniature circuit-breaker
Device short name: IDT40N
Device application: Distribution
Poles description: 4P
Number of protected poles: 4
[In] rated current: 63 A
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity code: N
Breaking capacity: 6000 A Icn at 400 V AC 50 Hz conforming to EN/IEC 60898-110 kA Icu at 400 V AC 50 Hz conforming to EN/IEC 60947-2
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Quality labels: NF
Network frequency: 50 Hz
[Ue] rated operational voltage: 400 V AC 50 Hz
Magnetic tripping limit: 5...10 x In conforming to EN/IEC 60898-18 x In +/- 20 % conforming to EN/IEC 60947-2
[Ics] rated service breaking capacity: 6000 A 100 % x Icn at 400 V AC 50 Hz conforming to EN/IEC 60898-17.5 kA 75 % x Icu at 400 V AC 50 Hz conforming to EN/IEC 60947-2
Limitation class: 3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage: 440 V AC 50 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: ON/OFF indication
Mounting mode: Clip-on
Mounting support: DIN rail
9 mm pitches: 8
Height: 85 mm
Width: 72 mm
Depth: 74 mm
Product weight: 345 g
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Locking options description: Padlocking device
Top connection: Screw
Bottom connection: Screw
Connections - terminals: Tunnel type terminals top or bottom 1...25 mm² flexibleTunnel type terminals top or bottom 1...35 mm² rigid
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
Earth-leakage protection: Separate block
Compatibility code: IDT40N
Standards: EN/IEC 60898-1EN/IEC 60947-2
Product certifications: CEBVRINADNV
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3 conforming to EN/IEC 60947-2
Relative humidity: 95 % at 55 °C
Operating altitude: 2000 m
Ambient air temperature for operation: -25...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489483135
