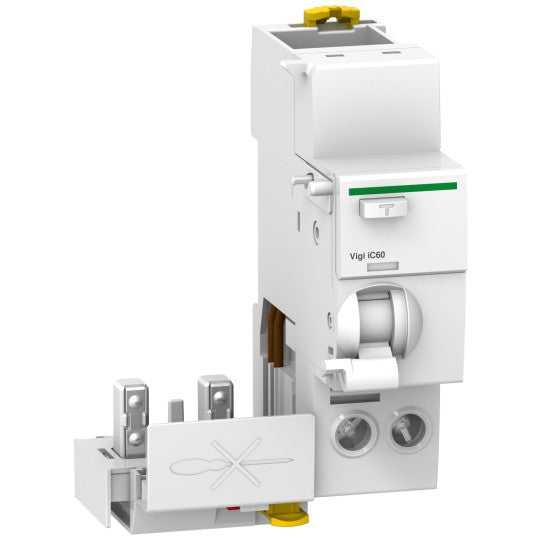

Schneider Electric Acti 9 A9Q11225 - Acti9 Vigi iC60 differential block - 2P 25A 30mA type AC 230-240V 400-415V - Schneider Electric
Schneider Electric Acti 9 A9Q11225 - Acti9 Vigi iC60 differential block - 2P 25A 30mA type AC 230-240V 400-415V - Schneider Electric

A9Q11225 - Acti9 Vigi iC60 differential block - 2P 25A 30mA type AC 230-240V 400-415V - Schneider Electric

SKU : A9Q11225

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9Q11225 - Acti9 Vigi iC60 differential block - 2P 25A 30mA type AC 230-240V 400-415V - Schneider Electric

DESCRIPTION

Range: Acti 9
Range of product: Reflex iC60IC60
Product or component type: Add-on residual current devices
Device short name: Vigi iC60
Poles description: 2P
[In] rated current: 25 A
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Network type: AC
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 230...240 V AC 50/60 Hz conforming to EN 61009-1230...240 V AC 50/60 Hz conforming to IEC 61009-1
Standards: IEC 61009-1EN 61009-1
9 mm pitches: 3
Device location in system: Outgoer
Residual current tripping technology: Voltage independent
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Range compatibility: Acti 9 iC60Acti 9 Reflex iC60
Product compatibility: Single terminal
Local signalling: Trip indicator
Mounting mode: Clip-on
Mounting support: DIN rail
Electrical connection to mcb: Plug in
Comb busbar and distribution block compatibility: Bottom: YES
Height: 91 mm
Width: 27 mm
Depth: 73.5 mm
Product weight: 0.165 kg
Connections - terminals: Tunnel type terminal downside for 1 cable(s) 1...25 mm² rigid without cable endTunnel type terminal downside for 1 cable(s) 1...16 mm² flexible without cable endTunnel type terminal downside for 1 cable(s) 1...16 mm² flexible with cable end
Wire stripping length: 14 mm for bottom connection
Tightening torque: 2 N.m bottom
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3 conforming to IEC 60947-2
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480393419
