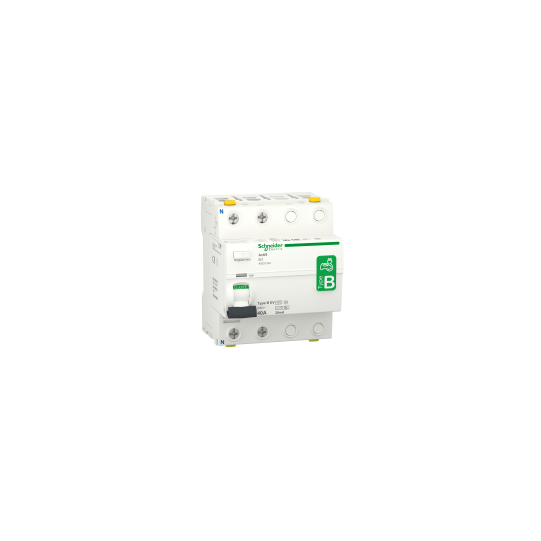

Schneider Electric Acti9 A9Z51240 - Acti9 iID residual current circuit breaker - 2P - 40A - 30mA - type B - EV - 230V - Schneider Electric
Schneider Electric Acti9 A9Z51240 - Acti9 iID residual current circuit breaker - 2P - 40A - 30mA - type B - EV - 230V - Schneider Electric

A9Z51240 - Acti9 iID residual current circuit breaker - 2P - 40A - 30mA - type B - EV - 230V - Schneider Electric

SKU : A9Z51240

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

A9Z51240 - Acti9 iID residual current circuit breaker - 2P - 40A - 30mA - type B - EV - 230V - Schneider Electric

DESCRIPTION

Range: Acti9
Product name: Acti9 iID
Product or component type: Residual current circuit breaker (RCCB)
Device short name: iID
Device application: Electrical Vehicle charger
Poles description: 2P
Neutral position: Left
[In] rated current: 40 A
Network type: AC
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type B-EV (Electric Vehicle)
Quality labels: VDENFIMQKEMA
Device location in system: OutgoerGroup incomer
Network frequency: 50 Hz
[Ue] rated operational voltage: 230 V AC 50 Hz
Rated breaking and making capacity: Idm 1500 AIm 1500 A
Rated conditional short-circuit current: 10 kA
[Ui] rated insulation voltage: 250 V
[Uimp] rated impulse withstand voltage: 6 kV
Contact position indicator: Yes
Control type: Toggle
Local signalling: Trip indicatorON/OFF indication
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: tooth
Connection pitch: 18 mm
9 mm pitches: 8
Height: 88 mm
Width: 72 mm
Depth: 79 mm
Net weight: 350 g
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 15000 cycles
Locking options description: Padlocking device
Connections - terminals: Double terminal front 1...35 mm² rigidDouble terminal front 1...25 mm² flexibleDouble terminal front 1...25 mm² flexible with ferruleDouble terminal back 1...25 mm² rigidDouble terminal back 1...16 mm² flexibleDouble terminal back 1...16 mm² flexible with ferrule
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
Standards: IEC 61008-2-1IEC/EN 62423EN 61008-2-1
Product certifications: CCCKC
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
IK degree of protection: IK05
Pollution degree: 3
Overvoltage category: IV
Electromagnetic compatibility: 8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1
Operating altitude: 0...2000 m
Ambient air temperature for operation: -25...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606489567248
