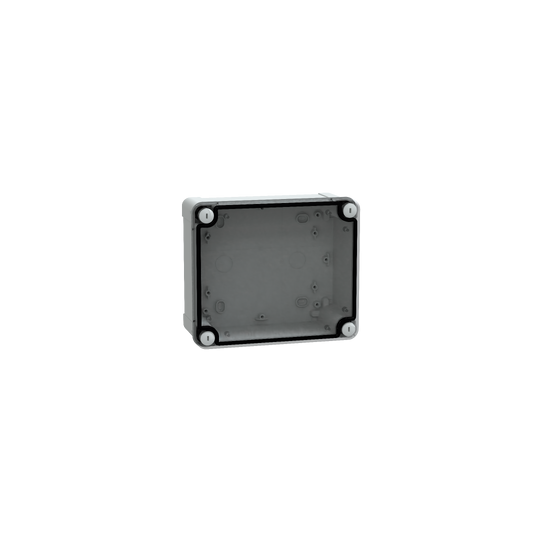

Schneider Electric PanelSeT ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20 - NSYTBS19168T
Schneider Electric PanelSeT ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20 - NSYTBS19168T

ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20 - NSYTBS19168T

SKU : NSYTBS19168T

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

ABS box IP66 IK07 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20 - NSYTBS19168T

DESCRIPTION

Range: PanelSeT
Device application: Multi-purpose
Product or component type: Industrial box
Height: 192 mm
Width: 164 mm
Depth: 87 mm
Internal height: 175 mm
Internal width: 150 mm
Internal depth: 80 mm
Enclosure mounting: Wall mounted
Device composition: 1 body1 cover4 cover screw
Body type: One piece moulded
Type of front cover: Low transparent cover
Cover fixing: Plastic screws
Lock type: Captive screw flat outside sealed area
Removable parts: Cover by captive screws
Material: ABS with 45% of post-industrial recycled content
Colour: Grey (RAL 7035)Transparent
Standards: IEC 62208
Product certifications: TÜV
Electrical insulation class: Class II
IP degree of protection: IP66 conforming to NEMA 4.4X
IK degree of protection: IK07 conforming to IEC 62262
Fire resistance: 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage: -15...40 °C
Ambient air temperature for operation: -25...60 °C
Net weight: 0.46 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.000 cm
Package 1 Width: 17.000 cm
Package 1 Length: 20.500 cm
Package 1 Weight: 467.000 g
Unit Type of Package 2: CAR
Number of Units in Package 2: 20
Package 2 Height: 40.000 cm
Package 2 Width: 40.500 cm
Package 2 Length: 60.500 cm
Package 2 Weight: 10.600 kg
Unit Type of Package 3: P12
Number of Units in Package 3: 240
Package 3 Height: 134.500 cm
Package 3 Width: 80.000 cm
Package 3 Length: 120.000 cm
Package 3 Weight: 132.000 kg
Total lifecycle Carbon footprint: 4 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3]
Code EAN: 3606480165467
