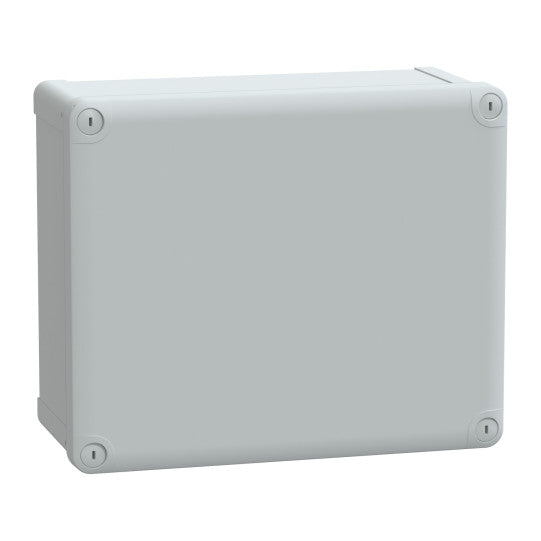

Schneider Electric Thalassa ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H20 - NSYTBS292412
Schneider Electric Thalassa ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H20 - NSYTBS292412

ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H20 - NSYTBS292412

SKU : NSYTBS292412

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

ABS box IP66 IK07 RAL7035 Int.H275W225D120 Ext.H291W241D128 Opaque cover H20 - NSYTBS292412

DESCRIPTION

Range: Thalassa
Product name: Thalassa TBS
Device application: Multi-purpose
Product or component type: Industrial box
Height: 291 mm
Width: 241 mm
Depth: 128 mm
Internal height: 275 mm
Internal width: 225 mm
Internal depth: 120 mm
Enclosure mounting: Wall mounted
Device composition: 1 body1 cover4 cover screw
Body type: One piece moulded
Type of front cover: Low plain cover
Cover fixing: Plastic screws
Lock type: Captive screw flat outside sealed area
Removable parts: Cover by captive screws
Material: ABS (acrylonitrile butadiene-styrene)
Colour: Grey (RAL 7035)
Standards: IEC 62208
Product certifications: TÜV
Electrical insulation class: Class II
IP degree of protection: IP66 conforming to NEMA 4.4X
IK degree of protection: IK07 conforming to IEC 62262
Fire resistance: 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage: -15...40 °C
Ambient air temperature for operation: -25...60 °C
Product weight: 1.08 kg
Sustainable offer status: Green Premium product
REACh Regulation: Free of Substances of Very High Concern above the threshold
REACh free of SVHC: Yes
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free: Yes
Mercury free: Yes
RoHS exemption information: Yes
China RoHS Regulation:  Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure: ENVPEP2012016_V1
Circularity Profile: ENVEOLI2012016_V1
Code EAN: 3606480165382
