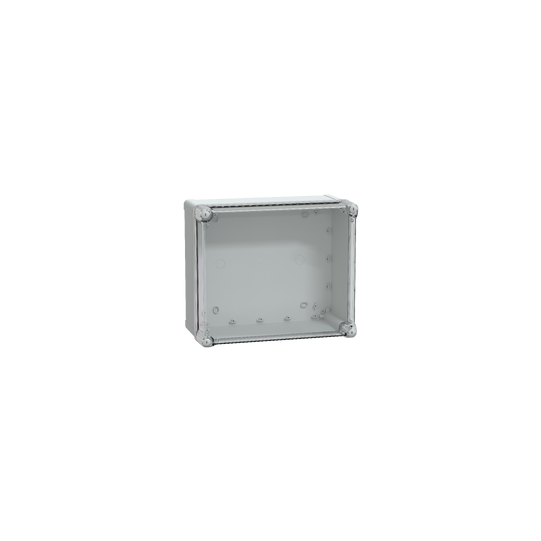

Schneider Electric PanelSeT ABS box IP66 IK07 RAL7035 Int.H325W275D160 Ext.H341W291D168 Transp.cover H60 - NSYTBS342916HT
Schneider Electric PanelSeT ABS box IP66 IK07 RAL7035 Int.H325W275D160 Ext.H341W291D168 Transp.cover H60 - NSYTBS342916HT

ABS box IP66 IK07 RAL7035 Int.H325W275D160 Ext.H341W291D168 Transp.cover H60 - NSYTBS342916HT

SKU : NSYTBS342916HT

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

ABS box IP66 IK07 RAL7035 Int.H325W275D160 Ext.H341W291D168 Transp.cover H60 - NSYTBS342916HT

DESCRIPTION

Range: PanelSeT
Device application: Multi-purpose
Product or component type: Industrial box
Height: 341 mm
Width: 291 mm
Depth: 168 mm
Internal height: 325 mm
Internal width: 275 mm
Internal depth: 160 mm
Enclosure mounting: Wall mounted
Device composition: 1 body1 cover4 cover screw
Body type: One piece moulded
Type of front cover: High transparent cover
Cover fixing: Plastic screws
Lock type: Captive screw flat outside sealed area
Removable parts: Cover by captive screws
Material: ABS with 45% of post-industrial recycled content
Colour: Grey (RAL 7035)Transparent
Standards: IEC 62208
Product certifications: TÜV
Electrical insulation class: Class II
IP degree of protection: IP66 conforming to NEMA 4.4X
IK degree of protection: IK07 conforming to IEC 62262
Fire resistance: 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage: -15...40 °C
Ambient air temperature for operation: -25...60 °C
Net weight: 1.7 kg
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 18.500 cm
Package 1 Width: 30.000 cm
Package 1 Length: 36.000 cm
Package 1 Weight: 2.093 kg
Unit Type of Package 2: CAR
Number of Units in Package 2: 3
Package 2 Height: 40.500 cm
Package 2 Width: 40.000 cm
Package 2 Length: 60.000 cm
Package 2 Weight: 6.280 kg
Unit Type of Package 3: P12
Number of Units in Package 3: 36
Package 3 Height: 134.500 cm
Package 3 Width: 80.000 cm
Package 3 Length: 120.000 cm
Package 3 Weight: 80.000 kg
Total lifecycle Carbon footprint: 16 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3]
Code EAN: 3606480165573
