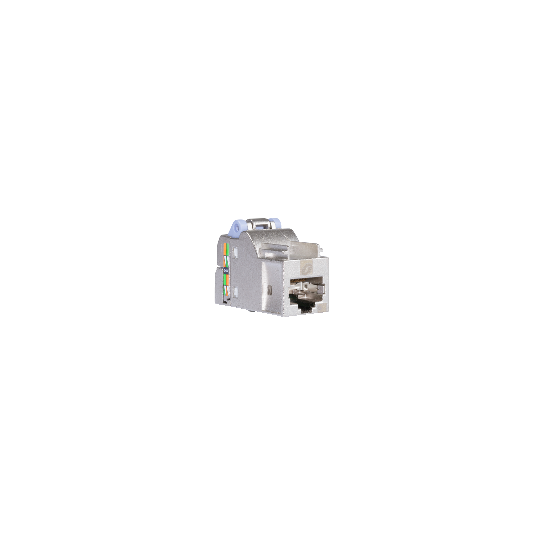

Schneider Electric Actassi Actassi S-One Connector RJ45 Shielded Cat 6 bag x 1 - VDIB17726B01
Schneider Electric Actassi Actassi S-One Connector RJ45 Shielded Cat 6 bag x 1 - VDIB17726B01

Actassi S-One Connector RJ45 Shielded Cat 6 bag x 1 - VDIB17726B01

SKU : VDIB17726B01

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Actassi S-One Connector RJ45 Shielded Cat 6 bag x 1 - VDIB17726B01

DESCRIPTION

Range: Actassi
Product or component type: RJ45 network socket
Device presentation: Integrated one piece design
Colour tint: Connector: silver (zamak)Wire organizer: blue (ABS + PC)
Colour code: 568 A/B
Type of packing: Individual bag
Quantity per set: Set of 1
[In] rated current: 1.5 A at 25 °C
Permissible voltage: 1000 V AC/DC peak, between contacts1500 V AC/DC peak, between contacts and shield
Contact resistance: 20 mOhm
Insulation resistance: Initial insulation resistance: >= 500 MOhm at 100 V DC
AWG gauge: AWG 24...AWG 23
Mechanical durability: 750 cycles
Coupling attenuation: >= 45 dB at 30...100 MHz>= 85 - 20 x log(f) dB at 100...1000 MHz
Pin number: 8 pins of copper alloy and gold plated conforming to IEC 60603-7
Protection type: Metallic: 360° self adjusting + drain wire contactIntegrated short circuit barrier
Pulling force: 50 N during 60 s
Transfer impedance:
Transverse conversion loss: >= 50 dB>= 68 - 20 x log(f) dB at 1...250000 kHz
Tool type: Without tool
Cable outer diameter: 0.9...1.4 mm
Cable shielding type: STP
Communication network category: 6
Communication network type: 1000BASE-T
Communication port protocol: VoIP (Voice IP)PoE+ (Power over Ethernet)4PPoE 100W (Power over Ethernet)
Transmission frequency: 0...250 MHz
Type of footprint: S-One
Height: 28 mm
Length: 35 mm
Width: 18 mm
Targeted region: Europe
Ambient air temperature for operation: -40...70 °C
Climatic withstand: 40/070/21 (21 days)
Flame retardance: UL94-V0
Standards: ANSI/TIA-568-C.2IEC 60603-7-4ISO/IEC 11801:2011 Ed.2.2UL 1863
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480384431
