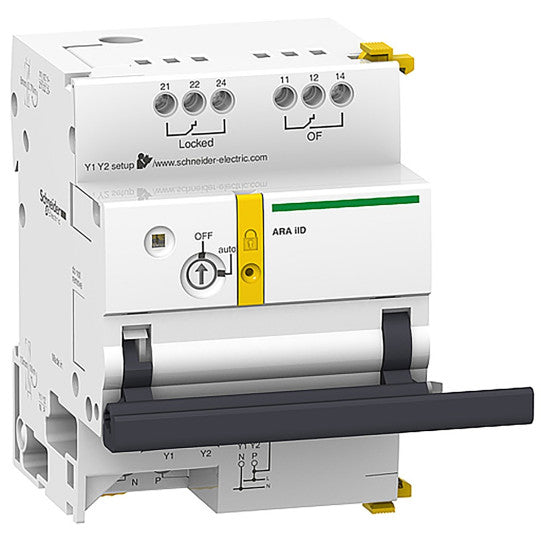

Schneider Electric Acti 9 Acti 9 - ARA auto recloser aux for iID 4P - 1 Prog - A9C70344
Schneider Electric Acti 9 Acti 9 - ARA auto recloser aux for iID 4P - 1 Prog - A9C70344

Acti 9 - ARA auto recloser aux for iID 4P - 1 Prog - A9C70344

SKU : A9C70344

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti 9 - ARA auto recloser aux for iID 4P - 1 Prog - A9C70344

DESCRIPTION

Range of product: IID
Range: Acti 9
Product or component type: Automatic recloser auxiliary
Device short name: ARA iID
Signal contacts composition: 2 OF volt-free contacts
Signalling circuit voltage: 24 V 10 mA AC/DC 230 V 1 A AC
Control type: Inhibition of automatism maintained 230 V AC 50/60 HzUltimate reclosing impulse 230 V AC 50/60 Hz
Input current: 5 mA
Impulse duration: >= 200 ms control circuit
Response time:
[Us] rated supply voltage: 230 V AC 50/60 Hz
Power consumption in W: 2 W
[Ui] rated insulation voltage: 400 V
[Uimp] rated impulse withstand voltage: 6 kV
Value of setting: Program 1: 15 reclosing attemps, long fixed cycle
Local signalling: Flashing orange LED: not operationalFlashing green LED: normal operationFlashing red LED: reclosing cycle in progressFixed red LED: automatic recloser locked
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: NO
9 mm pitches: 7
Height: 93 mm
Width: 63 mm
Depth: 75.5 mm
Product weight: 470 g
Colour: White
Electrical durability: 5000 cycles
Provision for padlocking: Padlockable
Locking options description: Padlocking in OFF position
Connections - terminals: Power supply: tunnel type terminals 1 cable(s) 0.5...10 mm² rigid without cable endInput: tunnel type terminals 1 cable(s) 0.5...10 mm² rigid without cable endOutput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² rigid without cable endOutput: tunnel type terminals 1 cable(s) 0.5...2.5 mm² rigid without cable endInput: tunnel type terminals 1 cable(s) 0.5...6 mm² flexible without cable endOutput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² flexible without cable endOutput: tunnel type terminals 1 cable(s) 0.5...2.5 mm² flexible without cable endPower supply: tunnel type terminals 1 cable(s) 0.5...4 mm² flexible with cable endInput: tunnel type terminals 1 cable(s) 0.5...4 mm² flexible with cable endOutput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² flexible with cable endOutput: tunnel type terminals 1 cable(s) 0.5...1.5 mm² flexible with cable endPower supply: tunnel type terminals 2 cable(s) 0.5...2.5 mm² rigid without cable endInput: tunnel type terminals 2 cable(s) 0.5...2.5 mm² rigid without cable endPower supply: tunnel type terminals 2 cable(s) 0.5...2.5 mm² flexible with cable endInput: tunnel type terminals 2 cable(s) 0.5...2.5 mm² flexible with cable endInput: tunnel type terminals 2 cable(s) 0.5...1.5 mm² flexible without cable end
Wire stripping length: Power supply: 10 mm for bottom connectionInput: 10 mm for bottom connectionOutput: 8 mm for top connection
Tightening torque: Power supply: 1 N.mInput: 1 N.mOutput: 0.7 N.m
Range compatibility: Acti 9 iID residual current circuit breaker (RCCB)
Product compatibility: 4P iID
Compatibility code: ARA iID
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3 conforming to IEC 60947
Overvoltage category: II
Tropicalisation: 2
Relative humidity: 93 % at 40 °C
Ambient air temperature for storage: -40...70 °C
Ambient air temperature for operation: -25...60 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480675683
