Schneider Electric Acti 9 Acti 9 - Auxiliary contact iOF - 1 C/O - AC/DC - A9A26924
Schneider Electric Acti 9 Acti 9 - Auxiliary contact iOF - 1 C/O - AC/DC - A9A26924

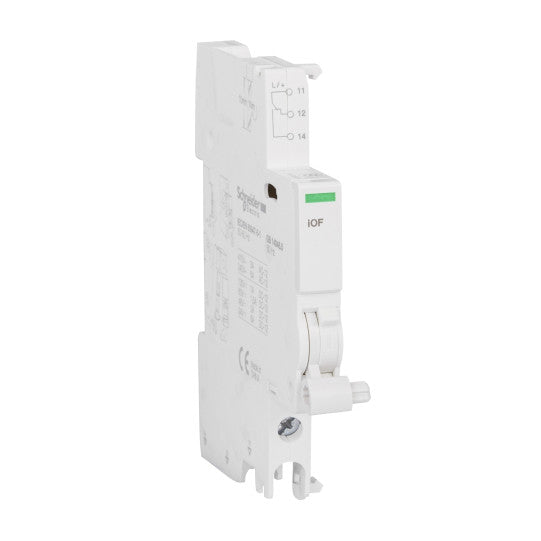

Acti 9 - Auxiliary contact iOF - 1 C/O - AC/DC - A9A26924

SKU : A9A26924

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti 9 - Auxiliary contact iOF - 1 C/O - AC/DC - A9A26924

DESCRIPTION

Range: Acti 9
Range of product: IIDARAISW-NARCAISW 40...125IC60IDPN Vigi
Product or component type: OC contact
Device short name: IOF
Signal contacts composition: 1 C/O
[In] rated current: 6 A: 240 V AC - 50/60 Hz3 A: 415 V AC - 50/60 Hz2 A: 48 V DC1.5 A: 60 V DC1 A: 130 V DC6 A: 24 V DC
9 mm pitches: 1
Range compatibility: Acti 9 iSW-NAActi 9 iC60Acti 9 iC65Acti 9 iC60 RCBOActi 9 iIDActi 9 ARAActi 9 RCAActi 9 iDPN (China version)Acti 9 iDPN VigiActi 9 iSWActi 9 iC40
[Ui] rated insulation voltage: 500 V
[Uimp] rated impulse withstand voltage: 4 kV
Mounting mode: Clip-on
Mounting support: DIN rail
Height: 86 mm
Width: 9 mm
Depth: 73 mm
Product weight: 32 g
Colour: White
Connections - terminals: Screw clamp terminal (bottom) 1 cable(s) 1...4 mm² - rigidScrew clamp terminal (bottom) 1 cable(s) 0.5...2.5 mm² - flexibleScrew clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigidScrew clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length: 10 mm
Tightening torque: 1 N.m
Product compatibility: Single terminal
Compatibility code: IOF
Market segment: Small commercialResidential
Standards: EN/IEC 60947-5-1
IP degree of protection: IP20 conforming to EN/IEC 60947-5-1
Pollution degree: 3 conforming to EN/IEC 60947-5-1
Tropicalisation: 2 conforming to EN/IEC 60947-5-1
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480087905
Contexte: Acti9, iOF contact auxiliaire OF 240...415VCA 24...130VCC
Substitution_texte: Obsolete product, here is the list of products that can replace the reference A9A26924 :
  • A9A26904
  • A9A26914
    		•
