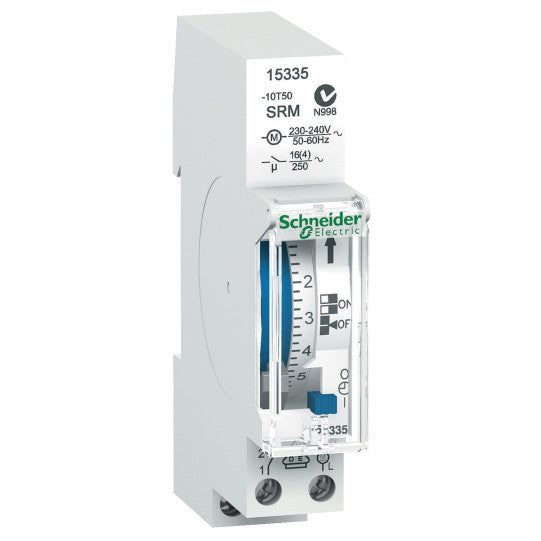

Schneider Electric Acti 9 Acti 9 - IH - mechanical time switch - 24 h - without memory - 15335
Schneider Electric Acti 9 Acti 9 - IH - mechanical time switch - 24 h - without memory - 15335

Acti 9 - IH - mechanical time switch - 24 h - without memory - 15335

SKU : 15335

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti 9 - IH - mechanical time switch - 24 h - without memory - 15335

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Product name: Acti 9 IH
Device short name: IH
Product or component type: Mechanical time switch
Number of channels: 1
Function available: Manual time changeover
Device application: Building
Load type: Parallel-corrected fluorescent tube 5 x 58 W 4.7 µFParallel-corrected fluorescent tube 7 x 40 W 7 µFParallel-corrected fluorescent tube 2 x 100 W 18 µF230 V AC halogen lamp 1000 W230 V AC incandescent lamp 1000 WFluocompact lamp 700 VACompact fluorescent lamp 150 WLED lamp LED lamp > 2 W 300 W
Cycle duration: 24 h
Maximum number of switchings: 48 on - 48 off
Minimum interval duration: 15 min
Type of setting: Manual time changeover
Measurement accuracy: +/- 1 s/day 20 °C
Power consumption in W: 0.5 W
Maximum switching current: 16 A - 250 V AC pf = 14 A - 250 V AC pf = 0.6
[Ue] rated operational voltage: 230 V AC at 50 Hz
Mounting support: DIN rail
9 mm pitches: 2
Colour tint: White (RAL 9003)
Connections - terminals: Screw terminals
Width: 18 mm
Height: 90 mm
Depth: 66 mm
Product weight: 0.097 kg
Function: None
Absence for holidays: No
Time changeover: Manual
Updated by: None
Compatibility code: IH
Market segment: ResidentialSmall commercial
Ambient air temperature for operation: -25...50 °C
IP degree of protection: Terminals: IP20 B
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3303430153351
