Schneider Electric Acti 9 Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes - 15363
Schneider Electric Acti 9 Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes - 15363

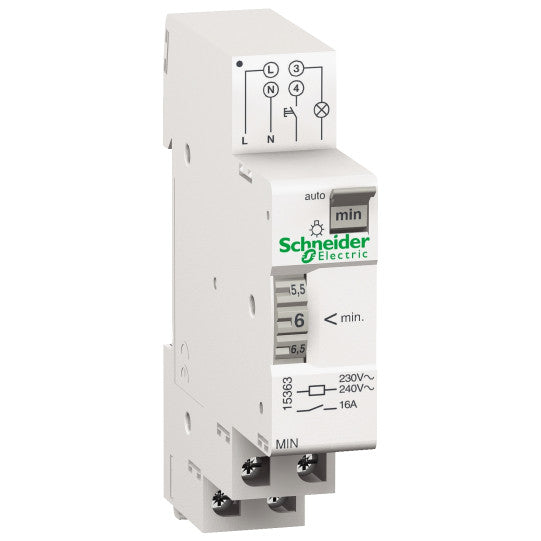

Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes - 15363

SKU : 15363

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes - 15363

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Product name: Acti 9 MIN
Device short name: MIN
Product or component type: Electromechanical timer
Colour tint: White (RAL 9003)
Device application: Building
Load type: Parallel-corrected fluorescent tube 14 x 40 W 4.7 µFParallel-corrected fluorescent tube 10 x 58 W 7 µFParallel-corrected fluorescent tube 3.0 x 100 W 18 µF230 V AC halogen lamp 2300 W230 V AC incandescent lamp 2300 WFluocompact lamp 2300 VACompact fluorescent lamp 21 x 7 WCompact fluorescent lamp 13 x 11 WCompact fluorescent lamp 10 x 15 WCompact fluorescent lamp 7 x 20 WLED lamp LED lamp > 2 W 300 W
Power consumption in VA: 1 VA
Maximum switching current: 16 A - 230 V AC pf = 1
[Ue] rated operational voltage: 230 V AC at 50 Hz
Time delay: Adjustable from 1 to 7 minutes
Mounting support: DIN rail
9 mm pitches: 2
Connections - terminals: Screw terminals -
Width: 18 mm
Height: 83 mm
Depth: 68 mm
Product weight: 84 g
Switch off warning: No
Additional function: None
Selection of the type of connection: Selector switch
Insulation shield: No
Compatibility code: MIN
Market segment: Small commercial
Ambient air temperature for operation: -10...50 °C
IP degree of protection: IP20 B
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3303430153634
