Schneider Electric Acti 9 Acti9 centralized control and remote indication - iATLc+s - A9C15409
Schneider Electric Acti 9 Acti9 centralized control and remote indication - iATLc+s - A9C15409

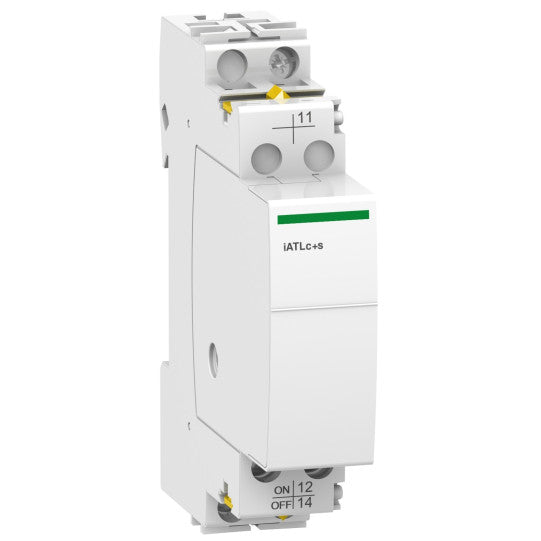

Acti9 centralized control and remote indication - iATLc+s - A9C15409

SKU : A9C15409

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 centralized control and remote indication - iATLc+s - A9C15409

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Device short name: IATLc+s
Product or component type: Centralized control and remote indication auxiliary
Signal contacts composition: 1 C/O
Signalling circuit voltage: 24 V AC/DC: 10 mA12...240 V AC: 50/60 Hz 6 A12...24 V DC: 6 A15...240 V AC: 50/60 Hz 2 A13...24 V DC: 2 A
[Uc] control circuit voltage: 24...240 V AC 50/60 Hz
[Ui] rated insulation voltage: 440 V
[Uimp] rated impulse withstand voltage: 4 kV
Mounting mode: Fixed, on right side of TL
Mounting support: DIN rail
9 mm pitches: 2
Height: 86 mm
Width: 18 mm
Depth: 71 mm
Colour: White
Connections - terminals: Tunnel type terminals0.5...4 mm² - rigidTunnel type terminals0.5...4 mm² - rigid - with cable endTunnel type terminals1...4 mm² - flexibleTunnel type terminals1...4 mm² - flexible - with cable end
Wire stripping length: 11 mm
Tightening torque: 1 N.m
Range compatibility: Acti 9 iTL iTLActi 9 iTL iTLiActi 9 iTL iTLs
Product compatibility: ITL (32 A)ITL (16 A)
Market segment: ResidentialSmall commercial
Compatibility code: IATLc+s
Overvoltage category: III
IP degree of protection: IP20 conforming to IEC 60529
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Ambient air temperature for operation: -20...50 °C
Ambient air temperature for storage: -40...70 °C
Standards: EN/IEC 60669-2-2
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480374906
