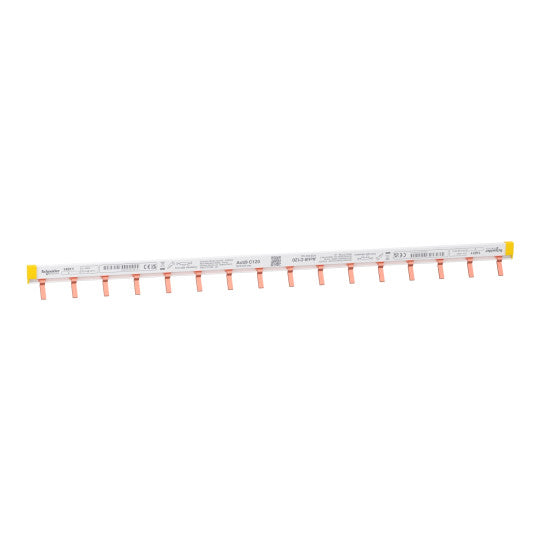

Acti9 - comb busbar - 1L - 27 mm pitch - 24 modules - 125A - 14811

SKU : 14811

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation
Estimated Delivery : - .

Acti9 - comb busbar - 1L - 27 mm pitch - 24 modules - 125A - 14811

DESCRIPTION

Range: Acti9
Product or component type: Comb busbar
Mounting mode: Horizontal
Accessory / separate part category: Connection accessory
Lines description: 1L
Total number of 18 mm modules: 24
Number of ways: 16 ways 1 L
Poles configuration for 1 way: 1 x 1P
Connection pitch: 27 mm
Connector type: Tooth
Distance between way: 27 mm
Marking: L
Insulation: Insulated
Device presentation: Cuttable
[Ie] rated operational current: 125 A at 40 °C
[Ue] rated operational voltage: 500 V AC
[Ui] rated insulation voltage: 500 V AC
Mounting location: Top on tunnel type terminals
9 mm pitches: 48
Width: 430 mm
Colour: Anthracite grey (RAL 7016)
Range compatibility: Acti 9 (Acti9 NG125)Acti 9 (Acti9 C120)
Standards: IEC 60664-1
Fire resistance: 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree: 3
Sustainable offer status: Green Premium productREACh Regulation
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3303430148111
