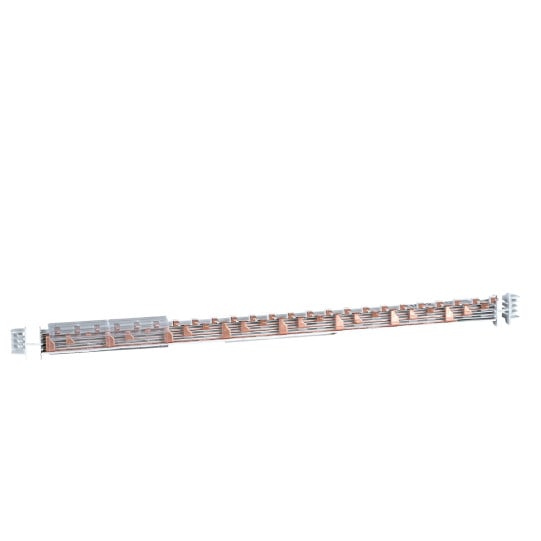

Schneider Electric Acti 9 Acti9 - comb busbar - 1L+N - 9 mm pitch - 24 modules - 80A - 21088
Schneider Electric Acti 9 Acti9 - comb busbar - 1L+N - 9 mm pitch - 24 modules - 80A - 21088

Acti9 - comb busbar - 1L+N - 9 mm pitch - 24 modules - 80A - 21088

SKU : 21088

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - comb busbar - 1L+N - 9 mm pitch - 24 modules - 80A - 21088

DESCRIPTION

Range: Acti 9
Product or component type: Comb busbar
Accessory / separate part category: Connection accessory
Lines description: 1L + N
Total number of 18 mm modules: 24
Number of ways: 24 ways N + 1 L
Poles configuration for 1 way: 1 x 1P + N1 x 2P
Connection pitch: 9 mm
Connector type: Tooth
Distance between way: 18 mm
Marking: N L
Insulation: Insulated
Device presentation: Cuttable
[Ie] rated operational current: 80 A at 40 °C
[Ue] rated operational voltage: 230 V AC Ph/N
[Ui] rated insulation voltage: 440 V AC conforming to IEC 61439-1
[Uimp] rated impulse withstand voltage: 6 kV
Mounting mode: Horizontal
Mounting location: Top on tunnel type terminals
9 mm pitches: 48
Width: 432 mm
Colour: Light grey (RAL 7035)
Range compatibility: Acti 9 DT40Acti 9 DT40 VigiActi 9 ITG40Multi 9 N40 Vigi N40 Vigi Vigi TG40Multi 9 N40
Standards: EN/IEC 60439-1IEC 60947-7
Fire resistance: 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree: 3 conforming to IEC 60947-7
REACh Regulation: Free of Substances of Very High Concern above the thresholdREACh free of SVHC
Code EAN: 3303430210887
