Schneider Electric Acti 9 Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A - A9XPH306
Schneider Electric Acti 9 Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A - A9XPH306

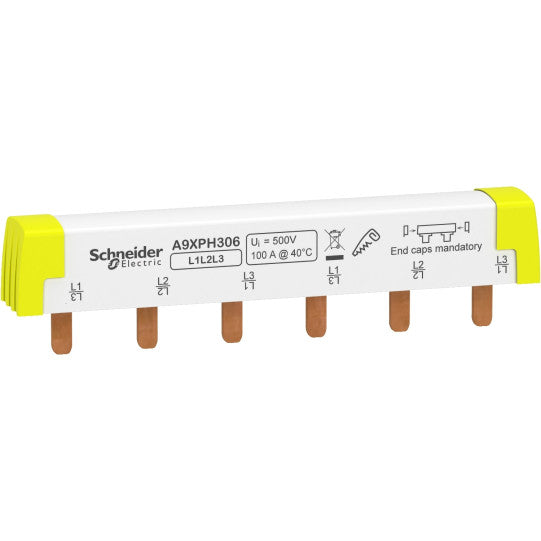

Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A - A9XPH306

SKU : A9XPH306

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A - A9XPH306

DESCRIPTION

Range: Acti 9
Product or component type: Comb busbar
Accessory / separate part category: Connection accessory
Lines description: 3L
Total number of 18 mm modules: 6
Number of ways: 2 ways 3 L
Poles configuration for 1 way: 1 x 3P
Connection pitch: 18 mm
Connector type: Tooth
Distance between way: 54 mm
Marking: L1 L2 L3
Insulation: Insulated
Device presentation: Cuttable
[Ie] rated operational current: 100 A at 40 °C
[Ue] rated operational voltage: 415 V AC
[Ui] rated insulation voltage: 500 V AC conforming to IEC 61439-2
Mounting mode: Horizontal
Mounting location: Top or bottom on tunnel type terminalsTop or bottom on double terminal
9 mm pitches: 12
Width: 110 mm
Colour: White (RAL 9003)
Range compatibility: Acti 9 iC60Acti 9 iK60Acti 9 iIDActi 9 iID KActi 9 iSWActi 9 iSW-NAMulti 9 C60
Standards: IEC 60947-7-1IEC 61439-2
Fire resistance: 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree: 3 conforming to IEC 60947-7-1
IP degree of protection: IP20 with end-pieces and tooth covers
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480747953
