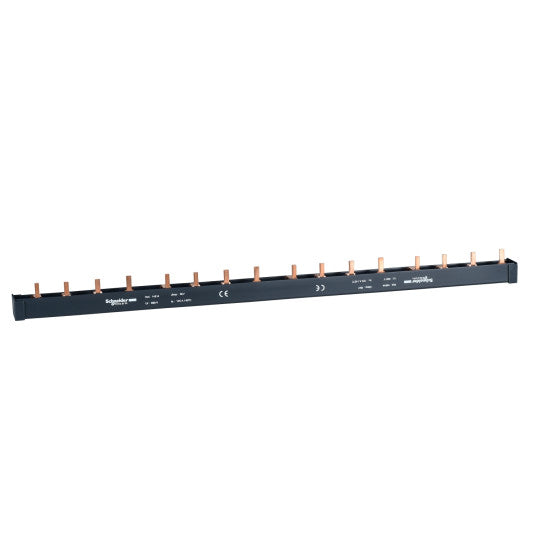

Schneider Electric Linergy Acti9 - comb busbar - 3L+N - 27 mm pitch - 24 modules - 125A - 14814
Schneider Electric Linergy Acti9 - comb busbar - 3L+N - 27 mm pitch - 24 modules - 125A - 14814

Acti9 - comb busbar - 3L+N - 27 mm pitch - 24 modules - 125A - 14814

SKU : 14814

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation
Estimated Delivery : - .

Acti9 - comb busbar - 3L+N - 27 mm pitch - 24 modules - 125A - 14814

DESCRIPTION

Range: Acti 9
Product or component type: Comb busbar
Accessory / separate part category: Connection accessory
Lines description: 3L + N
Total number of 18 mm modules: 24
Number of ways: 4 ways N + 3 L
Poles configuration for 1 way: 1 x 3P + N1 x 4P
Connection pitch: 27 mm
Connector type: Tooth
Distance between way: 108 mm
Marking: N L1 L2 L3
Insulation: Insulated
Device presentation: Cuttable
[Ie] rated operational current: 125 A at 40 °C
[Ue] rated operational voltage: 500 V AC
[Ui] rated insulation voltage: 620 V AC
Mounting mode: Horizontal
Mounting location: Top on tunnel type terminals
9 mm pitches: 48
Width: 430 mm
Colour: Anthracite grey (RAL 7016)
Range compatibility: Acti 9 NG125Acti 9 C120
Standards: IEC 60664-1
Fire resistance: 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree: 3
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3303430148142
