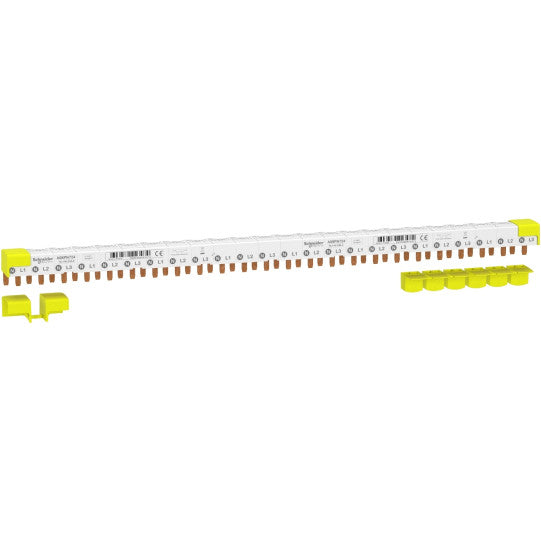

Schneider Electric Acti9 Acti9 - comb busbar - 3L+N balanced - 9 mm pitch - 24 modules - 80A - A9XPN724
Schneider Electric Acti9 Acti9 - comb busbar - 3L+N balanced - 9 mm pitch - 24 modules - 80A - A9XPN724

Acti9 - comb busbar - 3L+N balanced - 9 mm pitch - 24 modules - 80A - A9XPN724

SKU : A9XPN724

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - comb busbar - 3L+N balanced - 9 mm pitch - 24 modules - 80A - A9XPN724

DESCRIPTION

Range: Acti9
Product or component type: Comb busbar
Accessory / separate part category: Connection accessory
Lines description: 3L + N
Total number of 18 mm modules: 24
Number of ways: 8 ways N + 3 L (balanced)
Poles configuration for 1 way: 1 x 3P + N1 x 3P3 x 1P + N
Connection pitch: 9 mm between phase and neutral18 mm between phases
Connector type: Tooth
Distance between way: 54 mm
Marking: N L1 N L2 N L3
Insulation: Insulated
Device presentation: Cuttable
[Ie] rated operational current: 80 A at 40 °C
[Ue] rated operational voltage: 230 V AC Ph/N400 V AC Ph/Ph
[Ui] rated insulation voltage: 440 V AC conforming to IEC 61439-1
[Uimp] rated impulse withstand voltage: 4 kV
Mounting mode: Horizontal
Mounting location: Top on tunnel type terminals
9 mm pitches: 48
Height: 32 mm
Width: 434 mm
Depth: 28 mm
Product weight: 180 g
Colour: White (RAL 9003)
Range compatibility: Acti 9 DT40Acti 9 DT40 Vigi Vigi TG40 Vigi TG60Multi 9 N40Multi 9 N40 VigiActi9 iDT40Acti9 iDD40Acti9 iDD40 TG Vigi iTG40Acti9 iIG40Acti9 iDT40KActi9 iDD40KActi9 iIG40K
Standards: EN/IEC 60439-1
Fire resistance: 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree: 3 conforming to EN/IEC 60439-1
IP degree of protection: IP20 with end-pieces and tooth covers
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489443474
