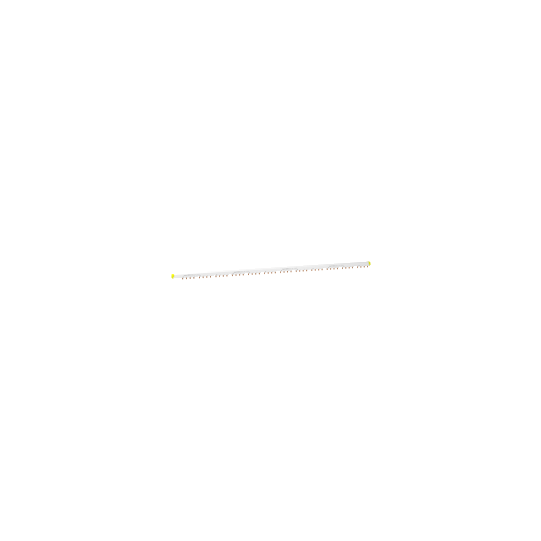

Schneider Electric Acti9 Acti9 - comb busbar - 3L+N wtih Aux - 18 mm pitch - 57 modules - 100A - A9XAH457
Schneider Electric Acti9 Acti9 - comb busbar - 3L+N wtih Aux - 18 mm pitch - 57 modules - 100A - A9XAH457

Acti9 - comb busbar - 3L+N wtih Aux - 18 mm pitch - 57 modules - 100A - A9XAH457

SKU : A9XAH457

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - comb busbar - 3L+N wtih Aux - 18 mm pitch - 57 modules - 100A - A9XAH457

DESCRIPTION

Range: Acti9
Product or component type: Comb busbar
Mounting mode: Horizontal
Accessory / separate part category: Connection accessory
Lines description: 3L + N
Total number of 18 mm modules: 57
Number of ways: 12 ways Aux + N + 3 L
Poles configuration for 1 way: 1 x 3P + N1 x 4P
Connection pitch: 18 mm
Connector type: Tooth
Distance between way: 81 mm
Marking: N L1 L2 L3
Insulation: Insulated
Device presentation: Cuttable
Provided equipment: Set of 10 end piece
[Ie] rated operational current: 100 A at 40 °C
[Ue] rated operational voltage: 415 V AC
[Ui] rated insulation voltage: 500 V AC conforming to IEC 61439-2
Mounting location: Top or bottom on tunnel type terminalsTop or bottom on double terminal
9 mm pitches: 114
Width: 1000 mm
Colour: White (RAL 9003)
Range compatibility: Acti 9 (Acti9 iC60)Acti 9 (Acti9 iK60)Acti 9 (Acti9 iID)Acti 9 (Acti9 iID K)Acti 9 (Acti9 iSW)Acti 9 (Acti9 iSW-NA)Multi9 (Multi9 C60)
Standards: IEC 60947-7-1IEC 61439-2
Fire resistance: 960 °C ( 30 s ) conforming to IEC 60695-2-1
Pollution degree: 3 conforming to IEC 60947-7-1
IP degree of protection: IP20 with end-pieces and tooth covers
Sustainable offer status: Green Premium productREACh Regulation
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606480485183
