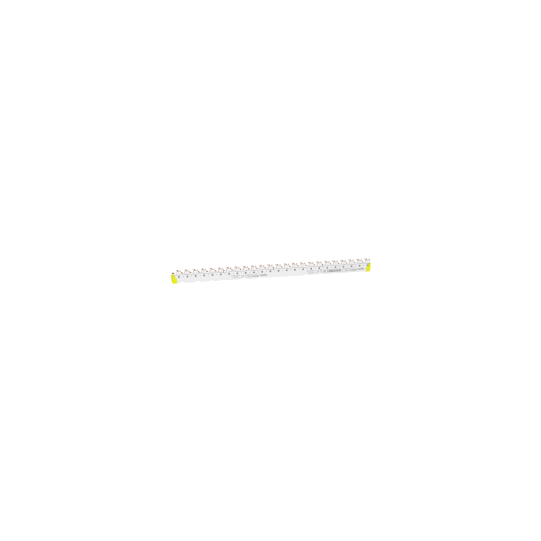

Acti9 - comb busbar bottom - 1L+N - 9 mm pitch - 24 modules - 80A - A9XPH624
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product or component type: | Comb busbar |
| Accessory / separate part category: | Connection accessory |
| Lines description: | 1L + N |
| Total number of 18 mm modules: | 24 |
| Number of ways: | 24 ways N + 1 L |
|---|---|
| Poles configuration for 1 way: | 1 x 1P + N |
| Connection pitch: | 9 mm |
| Connector type: | Tooth |
| Distance between way: | 18 mm |
| Marking: | N L |
| Insulation: | Insulated |
| Device presentation: | Cuttable |
| [Ie] rated operational current: | 80 A at 40 °C |
| [Ue] rated operational voltage: | 230 V AC Ph/N |
| [Ui] rated insulation voltage: | 500 V AC conforming to IEC 61439-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Mounting mode: | Horizontal |
| Mounting location: | Bottom on tunnel type terminals |
| 9 mm pitches: | 48 |
| Width: | 430 mm |
| Colour: | White (RAL 9003) |
| Range compatibility: | Acti 9 iDPNActi 9 iDPN Vigi |
| Standards: | IEC 60947-7-1IEC 61439-1 |
|---|---|
| Fire resistance: | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree: | 3 conforming to IEC 60947-7-1 |
| IP degree of protection: | IP20 with end-pieces and tooth covers |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480794148 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer: A9XPN624 - Acti9 - comb busbar - 1L+N - 9 mm pitch - 24 modules - 80A |
