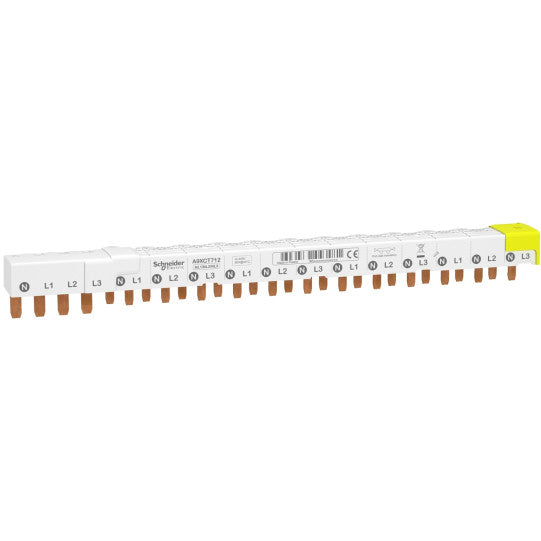

Acti9 Comb busbar for contactor iDT40 3PN 12 mod 18mm - A9XCT712

SKU : A9XCT712

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation
Estimated Delivery : - .

Acti9 Comb busbar for contactor iDT40 3PN 12 mod 18mm - A9XCT712

DESCRIPTION

Range: Acti9
Product or component type: Comb busbar
Accessory / separate part category: Connection accessory
Lines description: 3L + N
Total number of 18 mm modules: 12
Number of ways: 4 ways N + 3 L (balanced)
Poles configuration for 1 way: 1 x 3P + N
Connection pitch: 9 mm between phase and neutral18 mm between phases
Connector type: Tooth
Distance between way: 54 mm
Marking: N L1 N L2 N L3
Insulation: Insulated
Device presentation: Cuttable
[Ie] rated operational current: 63 A at 40 °C
[Ue] rated operational voltage: 230 V AC Ph/N400 V AC Ph/Ph
Mounting mode: Horizontal
Mounting location: Top on tunnel type terminals
9 mm pitches: 24
Height: 30 mm
Width: 270 mm
Depth: 20 mm
Product weight: 250 g
Colour: White (RAL 9003)
Range compatibility: Acti9 iDT40Acti9 iCTActi9 CT40
IP degree of protection: IP20
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489737146
