Schneider Electric Acti 9 Acti9 - fuse-disconnector STI - 1 pole + N - 25 A - for fuse 10.3 x 38 mm - A9N15646
Schneider Electric Acti 9 Acti9 - fuse-disconnector STI - 1 pole + N - 25 A - for fuse 10.3 x 38 mm - A9N15646

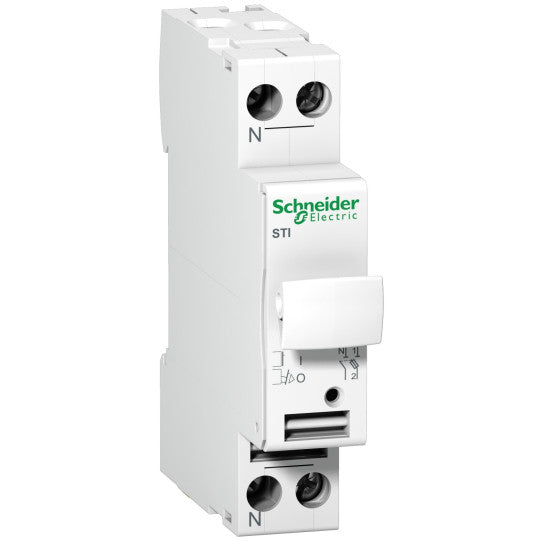

Acti9 - fuse-disconnector STI - 1 pole + N - 25 A - for fuse 10.3 x 38 mm - A9N15646

SKU : A9N15646

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 - fuse-disconnector STI - 1 pole + N - 25 A - for fuse 10.3 x 38 mm - A9N15646

DESCRIPTION

Range of product: STI
Range: Acti 9
Product name: Acti 9 STI
Product or component type: Fuse-disconnector
Device short name: STI
Poles description: 1P + N
[In] rated current: 2 A4 A6 A10 A16 A20 A25 A
Fuse curve: AMGG
Fuse size: 10.3 x 38 mm
[Ue] rated operational voltage: 500 V AC
[Ui] rated insulation voltage: 500 V AC 50/60 Hz
Mounting mode: Clip-on
Mounting support: DIN rail
9 mm pitches: 2
Height: 81 mm
Width: 18 mm
Depth: 75 mm
Colour: White
Connections - terminals: Screw clamp terminals1 cable(s) 0.75...10 mm² rigidScrew clamp terminals1 cable(s) 0.5...6 mm² flexibleScrew clamp terminals2 cable(s) 0.75...4 mm² rigidScrew clamp terminals2 cable(s) 0.5...6 mm² flexible
Wire stripping length: 12 mm
Tightening torque: 2 N.m
Compatibility code: STI
Standards: IEC 60269-1/2IEC EN 60947-3
IP degree of protection: IP20
Pollution degree: 3
Ambient air temperature for operation: -20...60 °C
Ambient air temperature for storage: -40...80 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480619533
