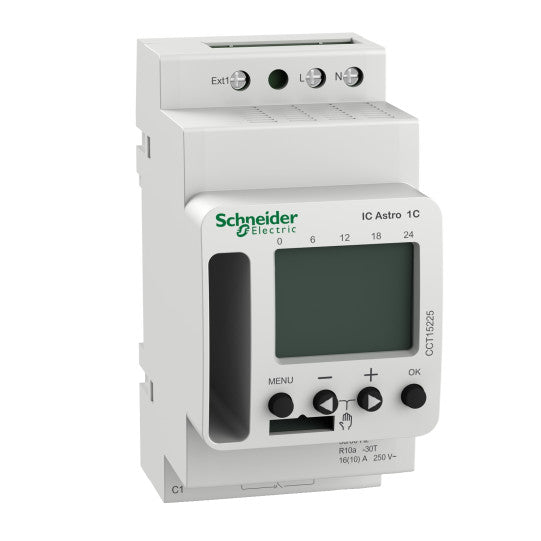

Schneider Electric SCHNEIDER Acti9 IC Astro 1C SMART programmable twilight switch - CCT15225
Schneider Electric SCHNEIDER Acti9 IC Astro 1C SMART programmable twilight switch - CCT15225

Acti9 IC Astro 1C SMART programmable twilight switch - CCT15225

SKU : CCT15225

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 IC Astro 1C SMART programmable twilight switch - CCT15225

DESCRIPTION

Range: Acti 9
Product name: Acti 9 IC
Product or component type: Programmable astronomic twilight switch
Device short name: IC Astro
Number of channels: 1
User language: EnglishFrenchDanishDutchTurkishNorwegianSpanishSwedishRomanianHungarianRussianPolishPortugueseSloveneBulgarianGermanCroatianItalian
Type of setting: Weekly programming
Device application: Building
Maximum power consumption in W: 0.5 W standby
Maximum switching current: 10 A - 250 V AC pf = 0.616 A - 250 V AC pf = 1
Minimum switching current: 10 mA 230 V AC100 mA 24 V AC/DC
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Contacts type and composition: C/O
Control type: By calculation of sunrise/sunset times
Control button type: 4 push-buttons
Function available: External input for overrideCode lock functionHoliday schedulesAutomatic winter/summer time changeoverOn/off permanent switchingSunrise/sunset time offset +/- 120 minPosition settingSwitch preselection
Load type: Incandescent lamp 2600 WHalogen lamp 2600 WNon-corrected fluorescent tube 2300 VASerial-compensated fluorescent tube 2300 VAParallel compensated fluorescent lamp 730 VA 80 µFCompact fluorescent lamp 170 WLED lamp LED lamp > 2 W 200 W
Accuracy: +/- 0.25 s/day 25 °C
Output type: Dry contact
Operating mode: Evening on, morning offEvening off, morning on inactiveOnly timer switch is active
Maximum number of switchings: 84
Backup time: 10 years
Display type: Backlit LCD
Information displayed: TimeOperating time counter (per channel) Switching behaviourDay
Mounting support: TH35 DIN rail conforming to EN 60715
Connections - terminals: 2 x 0.5...2.5 mm² screw terminals solid or flexible1 x 2.5 mm² screw terminals solid or flexible with sleeve
Marking: CE
Electrical insulation class: Class II
Overvoltage category: Class 3
Height: 92.6 mm
Width: 45 mm
Depth: 66.7 mm
Product weight: 115 g
Standards: EN 60730-2-7:2010
Ambient air temperature for operation: -30...55 °C
Ambient air temperature for storage: -30...70 °C
IP degree of protection: IP20
Relative humidity: 90 %, non-condensing
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489524548
