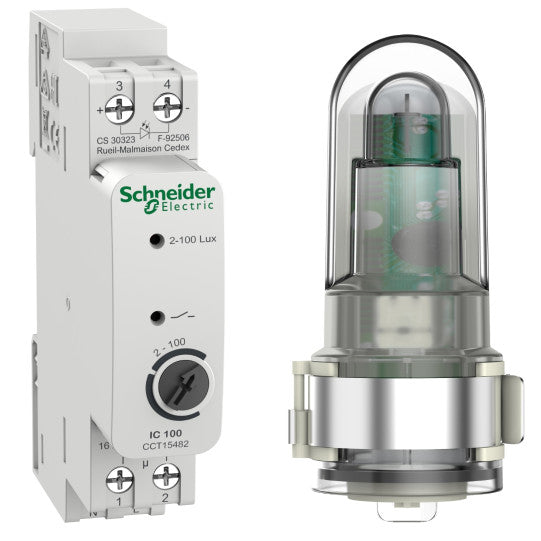

Schneider Electric Acti 9 Acti9 IC100 (2 - 100 lux) twilight switch - CCT15482
Schneider Electric Acti 9 Acti9 IC100 (2 - 100 lux) twilight switch - CCT15482

Acti9 IC100 (2 - 100 lux) twilight switch - CCT15482

SKU : CCT15482

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 IC100 (2 - 100 lux) twilight switch - CCT15482

DESCRIPTION

Range: Acti 9
Product name: Acti 9 IC
Product or component type: Twilight switch
Device short name: IC100
Provided equipment: twilight sensor outdoor
Load type: incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2300 VA serial-compensated fluorescent tube: 2300 VA parallel compensated fluorescent lamp: 730 VA (80 µF) compact fluorescent lamp: 170 W> 2 W LED lamp: 200 W
Device application: Building
Number of channels: 1
Maximum power consumption in W: 0.5 W stand by
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current: 10 A - 250 V AC pf = 0.616 A - 250 V AC pf = 1
Minimum switching current: 10 mA 230 V AC100 mA 24 V AC/DC
Electrical insulation class: Class II
Output type: Dry contact
Accuracy: +/- 0.25 s/day 25 °C
Contacts type and composition: 1 NO
Time delay: 20 s on80 s off
Light intensity adjustment: 2...100 lux
Connections - terminals: 1 x 2.5 mm² screw terminals solid or flexible with sleeve2 x 0.5...2.5 mm² screw terminals solid or flexible
Mounting support: TH35 DIN rail conforming to EN 60715
Height: 85.5 mm
Width: 18 mm
Depth: 67 mm
Product weight: 111 g
Overvoltage category: Class 3
Marking: CE
Control type: By brightness detection
Ambient air temperature for operation: -30...55 °C
Ambient air temperature for storage: -30...70 °C
Relative humidity: 90 %, non-condensing
IP degree of protection: IP20IP55 (sensor)
Standards: EN 60669-2-1
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489524593
