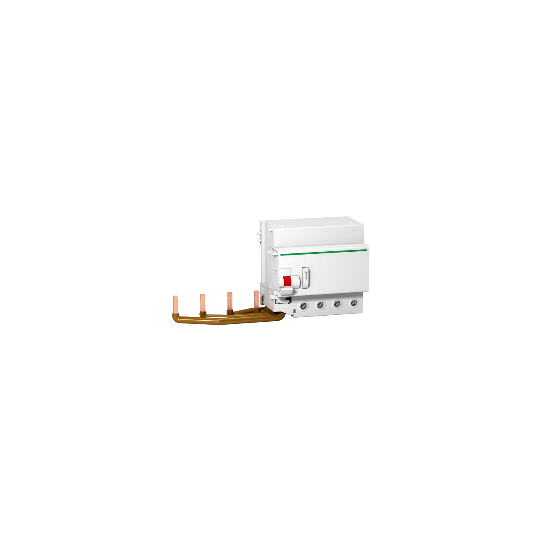

Schneider Electric SCHNEIDER Acti9 iC120 Vigi C120 - bloc différentiel - 4P - 30mA - type AC - intantané  - A9N18569
Schneider Electric SCHNEIDER Acti9 iC120 Vigi C120 - bloc différentiel - 4P - 30mA - type AC - intantané  - A9N18569

Acti9 iC120 Vigi C120 - bloc différentiel - 4P - 30mA - type AC - intantané  - A9N18569

SKU : A9N18569

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iC120 Vigi C120 - bloc différentiel - 4P - 30mA - type AC - intantané  - A9N18569

DESCRIPTION

Product or component type: Add-on residual current devices
Device short name: Vigi C120
Poles description: 4P
[In] rated current: 125 A
Network type: AC
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Class AC
Device location in system: Outgoer
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 230...415 V AC 50/60 Hz
Residual current tripping technology: Voltage independent
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Mounting mode: Clip-on
Mounting support: 35 mm symmetrical DIN rail
Electrical connection to mcb: By screws
9 mm pitches: 10
Height: 95 mm
Width: 198 mm
Depth: 73 mm
Product weight: 0.58 kg
Colour: White
Mechanical durability: 20000 cycles
Connections - terminals: Tunnel type terminals rigid wire(s) 1...50 mm² maxTunnel type terminals flexible wire(s) 1...35 mm² max
Wire stripping length: 15 mm
Tightening torque: 3.5 N.m
Standards: EN 61009
IP degree of protection: IP20
Pollution degree: 3 conforming to IEC 60947-2
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...60 °C
Warranty period: 18 months
Sustainable offer status: Green Premium productRoHS (date code: YYWW)
Code EAN: 3606480376320
Contexte:
  • Nominal current: 10 to 125 A
  • Large choice of breaking capacities and tripping curves: B, C, D…
  • Compliance with standards: IEC EN 60898 or IEC 60947-2 depending on the version, certified by national official authorities
  • Suitable for isolation in accordance with industrial standards: IEC 60947
  • Operating voltage: up to 440Vac, insulation voltage: 500V
  • Optional add-on earth leakage modules: C120 Vigi
  • Optional auxiliaries: indication of state and tripping, shunt trip, undervoltage trip, overvoltage trip
