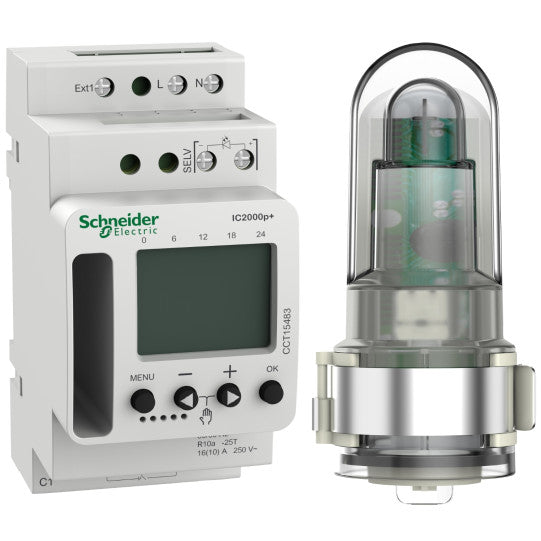

Schneider Electric Acti 9 Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch - CCT15483
Schneider Electric Acti 9 Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch - CCT15483

Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch - CCT15483

SKU : CCT15483

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch - CCT15483

DESCRIPTION

Range: Acti 9
Product name: Acti 9 IC
Product or component type: Programmable twilight switch with time switch function
Device short name: IC2000P+
Device application: Building
Provided equipment: twilight sensor outdoor
Load type: incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2300 VA serial-compensated fluorescent tube: 2300 VA parallel compensated fluorescent lamp: 730 VA (80 µF) compact fluorescent lamp: 170 W> 2 W LED lamp: 200 W
User language: EnglishFrenchDutchItalianRussianHungarianSpanishBulgarianRomanianPolishGermanCzechCroatianUkrainianPortugueseDanishFinnishSwedish
Number of channels: 1
Maximum power consumption in W: 0.8 W standby
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current: 10 A - 250 V AC pf = 0.616 A - 250 V AC pf = 1
Minimum switching current: 10 mA 230 V AC100 mA 24 V AC/DC
Electrical insulation class: Class II
Output type: Dry contact
Accuracy: +/- 0.25 s/day 25 °C
Contacts type and composition: C/O
Maximum number of switchings: 56
Function available: External input for overrideHoliday schedulesAutomatic winter/summer time changeoverCode lock functionOn/off switching timesSwitch preselection
Control type: By brightness detectionBy time schedule
Control button type: 4 push-buttons
Time delay range: 20...140 s (on)20...140 s (off)
Backup time: 10 years
Type of setting: Weekly programming
Light intensity adjustment: 2...2000 lux
Connections - terminals: 2 x 0.5...2.5 mm² screw terminals solid or flexible1 x 2.5 mm² screw terminals solid or flexible with sleeve
Mounting support: TH35 DIN rail conforming to EN 60715
Height: 92.6 mm
Width: 45 mm
Depth: 66.7 mm
Product weight: 150 g
Overvoltage category: Class 3
Marking: CE
Ambient air temperature for operation: -25...55 °C
Ambient air temperature for storage: -30...70 °C
Relative humidity: 90 %, non-condensing
IP degree of protection: IP20
Standards: EN 60669-2-1
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489524586
