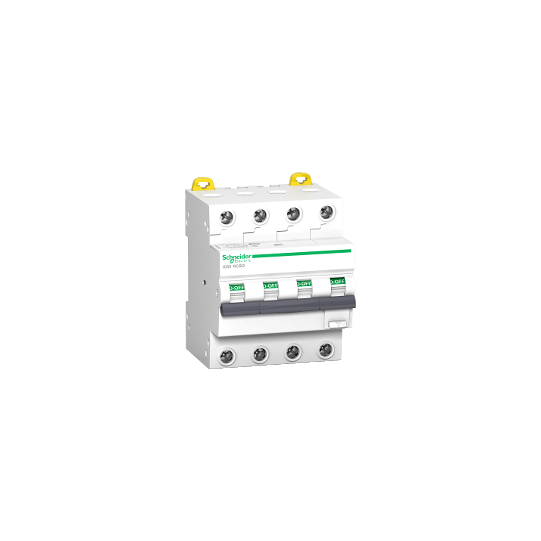

Schneider Electric Acti 9 Acti9 iC60 RCBO - 4P - 32 A - C Curve - 6000A/6kA - 30 mA - A type - A9D67432
Schneider Electric Acti 9 Acti9 iC60 RCBO - 4P - 32 A - C Curve - 6000A/6kA - 30 mA - A type - A9D67432

Acti9 iC60 RCBO - 4P - 32 A - C Curve - 6000A/6kA - 30 mA - A type - A9D67432

SKU : A9D67432

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iC60 RCBO - 4P - 32 A - C Curve - 6000A/6kA - 30 mA - A type - A9D67432

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Product name: Acti 9 iC60 RCBO
Product or component type: Residual current breaker with overcurrent protection (RCBO)
Device short name: IC60 RCBO
Device application: Distribution
Poles description: 4P
Number of protected poles: 4
[In] rated current: 32 A
Network type: AC
Trip unit technology: Thermal-magnetic
Curve code: C
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type A
Breaking capacity: 6000 A Icn at 380...415 V AC 50 Hz conforming to EN/IEC 61009-2-16 kA Icu at 380...415 V AC 50 Hz conforming to EN/IEC 60947-2
Suitability for isolation: No conforming to IEC 60947-1
Quality labels: NFKEMA-KEURVDEIMQ
Device location in system: Outgoer
Network frequency: 50 Hz
[Ue] rated operational voltage: 380...415 V AC 50 Hz
Magnetic tripping limit: 5...10 x In
Residual current tripping technology: Voltage independent
[Ics] rated service breaking capacity: 6000 A 100 % x Icn at 380...415 V AC 50 Hz conforming to EN/IEC 61009-2-16 kA 100 % x Icu at 380...415 V AC 50 Hz conforming to EN/IEC 60947-2
Rated breaking and making capacity: Idm 6000 A at 380...415 V AC 50 Hz conforming to EN/IEC 61009-2-1
Limitation class: 1 conforming to EN/IEC 61009-2-1
[Ui] rated insulation voltage: 500 V AC 50 Hz
[Uimp] rated impulse withstand voltage: 4 kV
Surge current: 250 A
Contact position indicator: No
Control type: Toggle
Local signalling: ON, OFF, fault trip
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: YESBottom: biconnect
9 mm pitches: 8
Height: 86 mm
Width: 72 mm
Depth: 78 mm
Product weight: 423 g
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Connections - terminals: Tunnel type terminal top or bottom 1...35 mm² rigidTunnel type terminal top or bottom 1...25 mm² flexibleTunnel type terminal top or bottom 1...25 mm² flexible with ferrule
Wire stripping length: 12 mm for top or bottom connection
Tightening torque: 2 N.m
Earth-leakage protection: Integrated
Standards: EN/IEC 60947-2EN/IEC 61009-2-1
IP degree of protection: IP40 (distribution enclosure) conforming to IEC 60529IP20 conforming to IEC 60529
Overvoltage category: III conforming to IEC 60364
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
Tropicalisation: 2
Relative humidity: 95 % at 55 °C
Ambient air temperature for operation: -25...40 °C
Ambient air temperature for storage: -40...70 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606481157645
