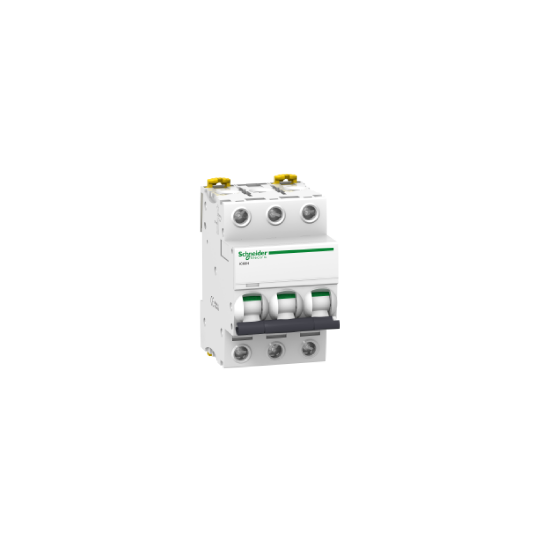

Schneider Electric Acti 9 Acti9, iC60H disjoncteur 3P 50A courbe C  - A9F84350
Schneider Electric Acti 9 Acti9, iC60H disjoncteur 3P 50A courbe C  - A9F84350

Acti9, iC60H disjoncteur 3P 50A courbe C  - A9F84350

SKU : A9F84350

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9, iC60H disjoncteur 3P 50A courbe C  - A9F84350

DESCRIPTION

Device application: Distribution
Range: Acti 9
Product name: Acti 9 iC60
Product or component type: Miniature circuit-breaker
Device short name: IC60H
Poles description: 3P
Number of protected poles: 3
[In] rated current: 50 A
Network type: DCAC
Trip unit technology: Thermal-magnetic
Curve code: C
Breaking capacity: 10 kA Icu conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz15 kA Icu conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz30 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz10000 A Icn conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz42 kA Icu conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz42 kA Icu conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz15 kA Icu conforming to EN/IEC 60947-2 -
Utilisation category: Category A conforming to EN 60947-2Category A conforming to IEC 60947-2
Suitability for isolation: Yes conforming to EN 60947-2Yes conforming to IEC 60947-2Yes conforming to EN 60898-1Yes conforming to IEC 60898-1
Standards: IEC 60947-2EN 60947-2EN 60898-1IEC 60898-1
Quality labels: NF
Network frequency: 50/60 Hz
Magnetic tripping limit: 8 x In +/- 20 %
[Ics] rated service breaking capacity: 7500 A 75 % x Icu conforming to EN 60898-1 - 400 V AC 50/60 Hz7500 A 75 % x Icu conforming to IEC 60898-1 - 400 V AC 50/60 Hz21 kA 50 % x Icu conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz21 kA 50 % x Icu conforming to EN 60947-2 - 12...133 V AC 50/60 Hz15 kA 100 % x Icu conforming to IEC 60947-2 - 125...180 V DC15 kA 100 % x Icu conforming to EN 60947-2 - 125...180 V DC5 kA 50 % x Icu conforming to IEC 60947-2 - 440 V AC 50/60 Hz15 kA 50 % x Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz7.5 kA 50 % x Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz5 kA 50 % x Icu conforming to EN 60947-2 - 440 V AC 50/60 Hz15 kA 50 % x Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz7.5 kA 50 % x Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
Limitation class: 3 conforming to EN 60898-13 conforming to IEC 60898-1
[Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to IEC 60947-2500 V AC 50/60 Hz conforming to EN 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-26 kV conforming to IEC 60947-2
Contact position indicator: Yes
Control type: Toggle
Local signalling: Trip indicator
Mounting mode: Fixed
Mounting support: DIN rail
Comb busbar and distribution block compatibility: YES top or bottom
9 mm pitches: 6
Height: 85 mm
Width: 54 mm
Depth: 78.5 mm
Product weight: 0.375 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles
Connections - terminals: Single terminal, top or bottom rigid wire(s) 1...35 mm² maxSingle terminal, top or bottom flexible wire(s) 1...25 mm² max
Wire stripping length: 14 mm top or bottom
Tightening torque: 3.5 N.m top or bottom
Earth-leakage protection: Separate block
IP degree of protection: IP20 conforming to EN 60529IP20 conforming to IEC 60529
Pollution degree: 3 conforming to EN 60947-23 conforming to IEC 60947-2
Overvoltage category: IV
Tropicalisation: 2 conforming to IEC 60068-1
Relative humidity: 95 % ( 55 °C )
Operating altitude: 0...2000 m
Ambient air temperature for operation: -35...70 °C
Ambient air temperature for storage: -40...85 °C
Warranty period: 18 months
Sustainable offer status: Green Premium productRoHS (date code: YYWW)
Code EAN: 3606480081774
Contexte:

With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service.

  • VisiSafe : for safe operation and maintenance work on circuits.
  • Class-2 insulation : continuous safety for operators and unqualified personnel.
  • VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time.
  • Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks.
  • Nominal current: 1 to 63 A
  • Large choice of breaking capacities up to 100 kA and tripping curves: B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2,
  • Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs),
  • Suitable for isolation in accordance with industrial standard IEC 60947
  • Operating voltage: up to 440 V AC, insulation voltage: 500 V
  • Optional add-on earth leakage modules: iC60 Vigi,
  • Optional auxiliaries: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping,
