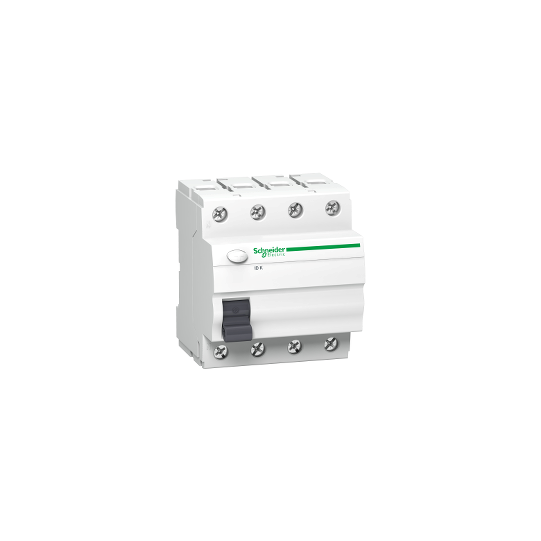

Schneider Electric Acti 9 Acti9 ID K - residual current circuit breaker - 4P - 40A - 30mA - type AC - A9Z05440
Schneider Electric Acti 9 Acti9 ID K - residual current circuit breaker - 4P - 40A - 30mA - type AC - A9Z05440

Acti9 ID K - residual current circuit breaker - 4P - 40A - 30mA - type AC - A9Z05440

SKU : A9Z05440

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 ID K - residual current circuit breaker - 4P - 40A - 30mA - type AC - A9Z05440

DESCRIPTION

Range of product: Acti 9
Range: Acti 9
Product name: Acti 9 ID K
Product or component type: Residual current circuit breaker (RCCB)
Device short name: ID K
Poles description: 4P
Neutral position: Left
[In] rated current: 40 A
Network type: AC
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Quality labels: OVEVDE
Device location in system: Outgoer
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 380...415 V AC 50 Hz
Residual current tripping technology: Voltage independent
Rated breaking and making capacity: Idm 500 AIm 500 A
Rated conditional short-circuit current: GL63: Inc 4.5 kAK60: Inc 6 kA
[Ui] rated insulation voltage: 440 V AC 50 Hz
[Uimp] rated impulse withstand voltage: 4 kV
Surge current: 250 A
Contact position indicator: No
Control type: Toggle
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Bottom: fork
9 mm pitches: 8
Height: 81 mm
Width: 72 mm
Depth: 68 mm
Colour: White
Mechanical durability: 5000 cycles
Electrical durability: AC-1: 2000 cycles
Connections - terminals: Biconnect top or bottom 1...35 mm² rigidBiconnect top or bottom 1...25 mm² flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
Market segment: ResidentialSmall commercial
Compatibility code: ID K
Standards: EN/IEC 61008-1
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 2
Electromagnetic compatibility: 8/20 µs impulse withstand, 200 A conforming to EN/IEC 61008-1
Ambient air temperature for operation: -5...40 °C
Ambient air temperature for storage: -30...70 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480473913
