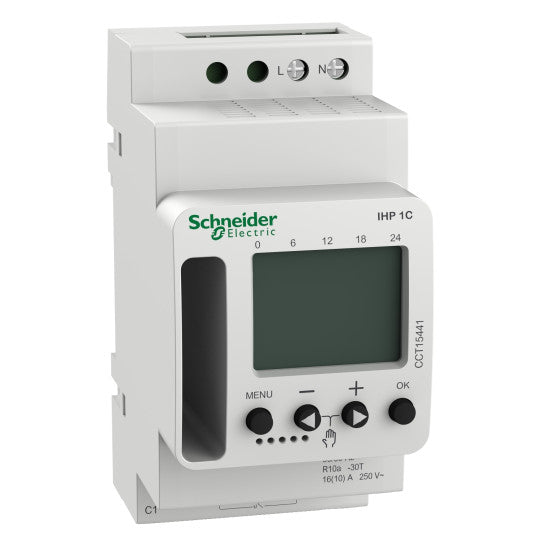

Acti9 IHP 1C w (24h/7d) programmable time switch - CCT15441

DESCRIPTION

Range: Acti 9
Product name: Acti 9 IHP
Device short name: IHP
Product or component type: Programmable digital time switch
Device application: Building
Number of channels: 1
User language: EnglishFrenchGermanDutchItalianSpanishPortugueseDanishNorwegianSwedishFinnish
Load type: incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2600 VA serial-compensated fluorescent tube: 2600 VA parallel compensated fluorescent lamp: 400 VA (48 µF) compact fluorescent lamp: 400 W> 2 W LED lamp: 200 W
Maximum power consumption in W: 0.5 W standby
Maximum switching current: 10 A - 250 V AC pf = 0.616 A - 250 V AC pf = 1
Minimum switching current: 10 mA 230 V AC100 mA 24 V AC/DC
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Electrical insulation class: Class II
Output type: Dry contact
Accuracy: +/- 0.25 s/day 25 °C
Contacts type and composition: C/O
Cycle duration: 24 hours + 7 days
Maximum number of switchings: 56
Minimum interval duration: 1 min
Function available: Code lock functionHoliday schedulesAutomatic winter/summer time changeoverOn/off permanent switchingManual operationOn/off switching timesSwitch preselection
Control button type: 4 push-buttons
Backup time: 10 years time and program saving
Type of setting: Weekly programming
Connections - terminals: 2 x 0.5...2.5 mm² screw terminals solid or flexible1 x 2.5 mm² screw terminals solid or flexible with sleeve
Mounting support: TH35 DIN rail conforming to EN 60715
Width: 45 mm
Height: 92.6 mm
Depth: 66.7 mm
Product weight: 114 g
Marking: CE
Overvoltage category: Class 3
Function: None
Absence for holidays: Yes
Time changeover: Automatic
Updated by: None
Standards: EN 60730-2-7:2010
Ambient air temperature for operation: -30...55 °C
Ambient air temperature for storage: -30...70 °C
Relative humidity: 90 %, non-condensing
IP degree of protection: IP20
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489524456
