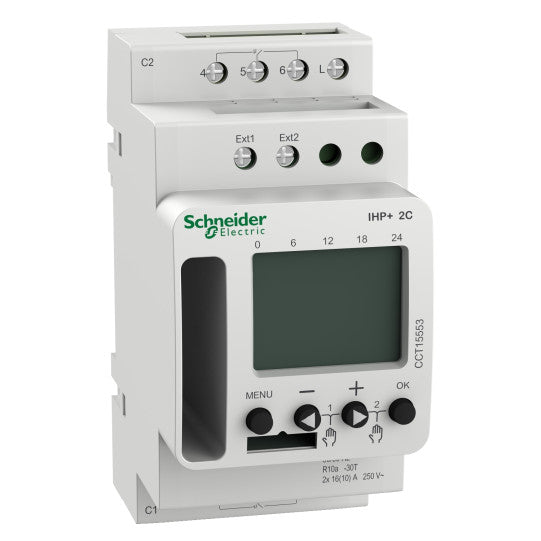

Schneider Electric Acti 9 Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch - CCT15553
Schneider Electric Acti 9 Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch - CCT15553

Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch - CCT15553

SKU : CCT15553

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 IHP+ 2C (24h/7d) SMARTw programmable time switch - CCT15553

DESCRIPTION

Range: Acti 9
Product name: Acti 9 IHP
Device short name: IHP+
Product or component type: Programmable digital time switch
Device application: Building
Number of channels: 2
Provided equipment: Memory stick
User language: EnglishFrenchGermanDutchItalianSpanishPortugueseDanishNorwegianSwedishFinnish
Load type: incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2600 VA serial-compensated fluorescent tube: 2600 VA parallel compensated fluorescent lamp: 400 VA (48 µF) compact fluorescent lamp: 400 W> 2 W LED lamp: 200 W
Maximum power consumption in W: 0.5 W standby
Maximum switching current: 10 A - 250 V AC pf = 0.616 A - 250 V AC pf = 1
Minimum switching current: 10 mA 230 V AC100 mA 24 V AC/DC
[Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz
Electrical insulation class: Class II
Output type: Dry contact
Accuracy: +/- 0.25 s/day 25 °C
Contacts type and composition: C/O
Cycle duration: 24 hours + 7 days
Maximum number of switchings: 84
Minimum interval duration: 1 s
Function available: External input for override per channelCode lock functionHoliday schedulesAutomatic winter/summer time changeoverOn/off switching timesPulse programmingCycle programmingSwitch preselection
Control button type: 4 push-buttons
Display type: Backlit LCD
Information displayed: Operating time counter
Backup time: 10 years time and program saving
Type of setting: Weekly programmingRandom program 2
Connections - terminals: 2 x 0.5...2.5 mm² screw terminals solid or flexible1 x 2.5 mm² screw terminals solid or flexible with sleeve
Mounting support: TH35 DIN rail conforming to EN 60715
Width: 45 mm
Height: 92.6 mm
Depth: 66.7 mm
Product weight: 141 g
Marking: CE
Overvoltage category: Class 3
Function: Pulse programming, random function, external input for override
Absence for holidays: Yes
Time changeover: Automatic
Updated by: None
Standards: EN 60730-2-7:2010
Ambient air temperature for operation: -30...55 °C
Ambient air temperature for storage: -30...70 °C
Relative humidity: 90 %, non-condensing
IP degree of protection: IP20
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606489524500
