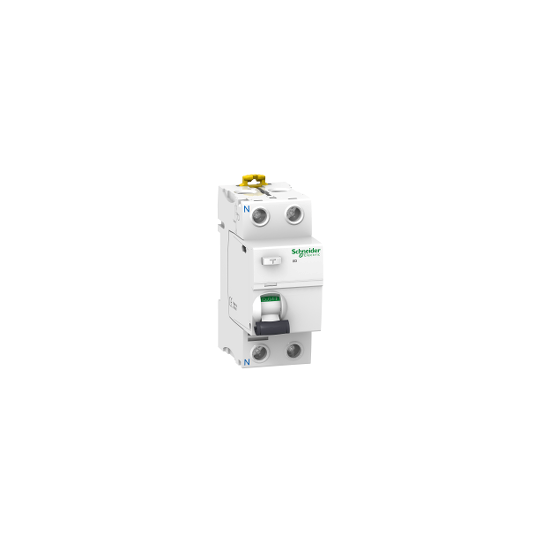

Schneider Electric Acti 9 Acti9 iID - RCCB - 2P - 25A - 30mA - type A - A9R01225
Schneider Electric Acti 9 Acti9 iID - RCCB - 2P - 25A - 30mA - type A - A9R01225

Acti9 iID - RCCB - 2P - 25A - 30mA - type A - A9R01225

SKU : A9R01225

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 2P - 25A - 30mA - type A - A9R01225

DESCRIPTION

Standards: EN/IEC 61008-1
IP protection degree:
Pollution degree: 3
Electromagnetic compatibility: Impulse resistance 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature: -25?60 °C
Ambient temperature for storage: -40?85 °C
Range: Acti9
Product name: Acti 9 iID
Product or equipment type: Residual current circuit breaker (RCCB)
Device name: iID
Pole description: 2P
Neutral position: Left
Rated operational current (In): 25 A
Network type: AC
Residual current sensitivity: 30 mA
Residual current protection delay: Instantaneous
Residual current protection class: Type A
Position in electrical installation: Outgoing
Network frequency: 50/60 Hz
[Ue] Rated operational voltage: 220...240 V AC 50/60 Hz
RCD technology: Voltage independent
Rated making and breaking capacity:
Idm: 1500 A Im
Conditional short-circuit current: 10 kA
[Ui] Rated insulation voltage: 500 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage: 6 kV
Fully apparent breaking: Yes
Control type: Toggle
Mounting mode: Clip-on
Mounting support: DIN rail
9 mm pitches: 4
Height: 91 mm
Width: 36 mm
Depth: 73.5 mm
Product weight: 0.21 kg
Color: White
Mechanical durability: 20000 cycles
Electrical durability:
Optional locking devices: Padlocking accessory
Connection mode:
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N·m top or bottom
AC-1: 15000 cycles
Idm: 1500 A
Im: 1500 A
Standards: EN/IEC 61008-1
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient air temperature for operation: -25...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480091483
