Schneider Electric Acti 9 Acti9 iID - RCCB - 2P - 40A - 300mA - type A - A9R04240
Schneider Electric Acti 9 Acti9 iID - RCCB - 2P - 40A - 300mA - type A - A9R04240

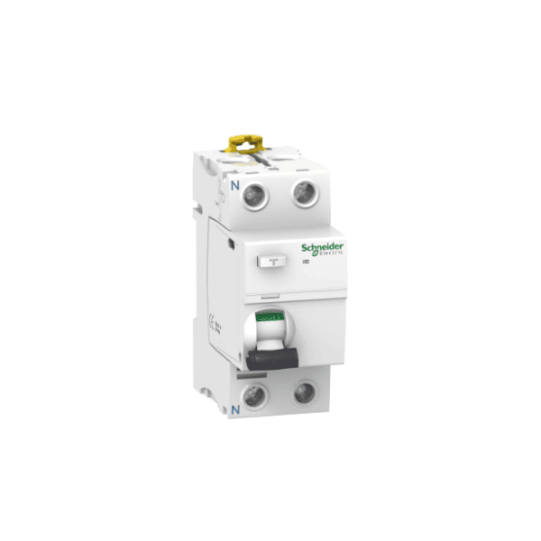

Acti9 iID - RCCB - 2P - 40A - 300mA - type A - A9R04240

SKU : A9R04240

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 2P - 40A - 300mA - type A - A9R04240

DESCRIPTION

Standards: EN/IEC 61008-1
IP protection degree:
Pollution degree: 3
Electromagnetic compatibility: Impulse resistance 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature: -25?60 °C
Ambient temperature for storage: -40?85 °C
Range: Acti9
Product name: Acti 9 iID
Product or equipment type: Residual current circuit breaker
Device name: iID
Pole description: 2P
Neutral pole position: Left
Assigned operating current: 40 A
Network type: AC
Residual current sensitivity: 300 mA
Residual protection time: Instantaneous
Residual protection class: Type A
Position of the device in the installation: Start
Network frequency: 50/60 Hz
[Ue] assigned operating voltage: 220...240 V AC 50/60 Hz
Residual technology: Voltage independent
Assigned breaking and closing capacity:
Idm: 1500 A Im
Nominal conditional short-circuit current: 10 kA
[Ui] assigned isolation voltage: 500 V AC 50/60 Hz
[Uimp] assigned impulse withstand voltage: 6 kV
Fully visible break: Yes
Control type: Rocker switch
Installation mode: Snap-in
Mounting support: DIN rail
9 mm pitch: 4
Height: 91 mm
Width: 36 mm
Depth: 73.5 mm
Product weight: 0.21 kg
Color: White
Mechanical life: 20000 cycles
Electrical life:
Optional locking description: Lockout device with padlock
Connection mode:
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
AC-1: 15000 cycles
Idm: 1500 A
Im: 1500 A
Code EAN: 3606480091520
