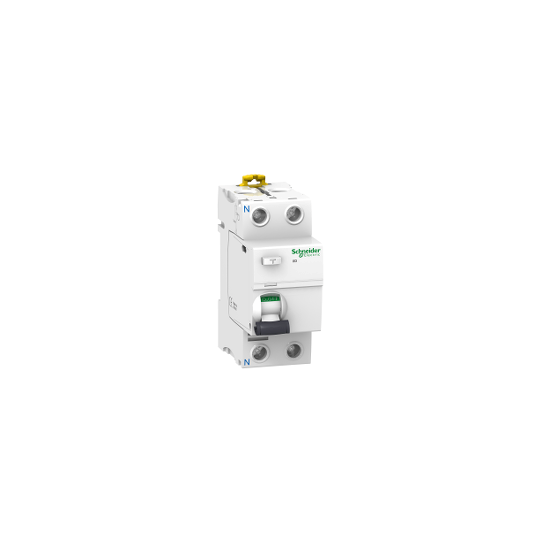

Schneider Electric Acti 9 Acti9 iID - RCCB - 2P - 40A - 30mA - type A - A9R01240
Schneider Electric Acti 9 Acti9 iID - RCCB - 2P - 40A - 30mA - type A - A9R01240

Acti9 iID - RCCB - 2P - 40A - 30mA - type A - A9R01240

SKU : A9R01240

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 2P - 40A - 30mA - type A - A9R01240

DESCRIPTION

Standards: EN/IEC 61008-1
IP protection degree:
Pollution degree: 3
Electromagnetic compatibility: Impulse resistance 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature: -25?60 °C
Ambient temperature for storage: -40?85 °C
Range: Acti9
Product name: Acti 9 iID
Product or equipment type: Residual current circuit breaker
Device name: iID
Pole description: 2P
Neutral pole position: Left
Rated operational current: 40 A
Network type: AC
Residual current sensitivity: 30 mA
Differential protection time delay: Instantaneous
Differential protection class: Type A
Device position in installation: Outgoing
Network frequency: 50/60 Hz
[Ue] Rated operational voltage: 220...240 V AC 50/60 Hz
Differential technology: Voltage-independent
Rated breaking and making capacity:
Idm: 1500 A Im
Conditional short-circuit current: 10 kA
[Ui] Rated insulation voltage: 500 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage: 6 kV
Fully apparent breaking: Yes
Control type: Rocker
Mounting mode: Clip-on
Mounting support: DIN rail
9 mm pitch: 4
Height: 91 mm
Width: 36 mm
Depth: 73.5 mm
Product weight: 0.21 kg
Color: White
Mechanical durability: 20000 cycles
Electrical durability:
Optional locking device: Padlocking device
Connection mode:
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
AC-1: 15000 cycles
Idm: 1500 A
Im: 1500 A
Code EAN: 3606480091513
