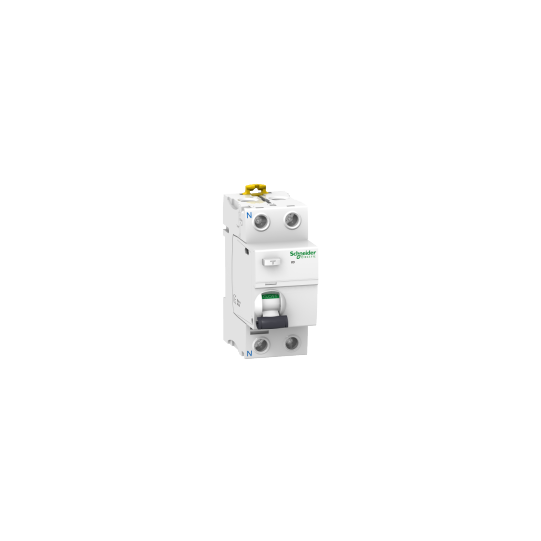

Schneider Electric Acti9 Acti9 iID - RCCB - 2P - 63A - 110V - 30mA - type A - A9R08263
Schneider Electric Acti9 Acti9 iID - RCCB - 2P - 63A - 110V - 30mA - type A - A9R08263

Acti9 iID - RCCB - 2P - 63A - 110V - 30mA - type A - A9R08263

SKU : A9R08263

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 2P - 63A - 110V - 30mA - type A - A9R08263

DESCRIPTION

Range of product: IID
Range: Acti9
Product name: Acti9 iID
Product or component type: Residual current circuit breaker (RCCB)
Device short name: iID
Poles description: 2P
Neutral position: Left
[In] rated current: 63 A
Network type: AC
Earth-leakage sensitivity: 30 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type A
Device location in system: Outgoer
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 110 V AC 50/60 Hz
Residual current tripping technology: Voltage independent
Rated breaking and making capacity: Idm 1500 AIm 1500 A
Rated conditional short-circuit current: 10 kA
[Ui] rated insulation voltage: 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 6 kV
Surge current: 250 A
Contact position indicator: Yes
Control type: Toggle
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: tooth
Connection pitch: 18 mm between phase and neutral
9 mm pitches: 4
Height: 91 mm
Width: 36 mm
Depth: 73.5 mm
Product weight: 0.21 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: AC-1: 15000 cycles
Total power losses: 7 W
Power losses per pole: 3.5 W
Locking options description: Padlocking device
Connections - terminals: Single terminal top or bottom 1...35 mm² rigidSingle terminal top or bottom 1...25 mm² flexibleSingle terminal top or bottom 1...25 mm² flexible with ferrule
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
Standards: EN/IEC 61008-1
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient air temperature for operation: -25...60 °C
Ambient air temperature for storage: -40...85 °C
China RoHS Regulation: Product out of China RoHS scope. Substance declaration for your informationEnvironmental Disclosure
Unit Type of Package 1: PCENumber of Units in Package 1
Code EAN: 3606480639746
