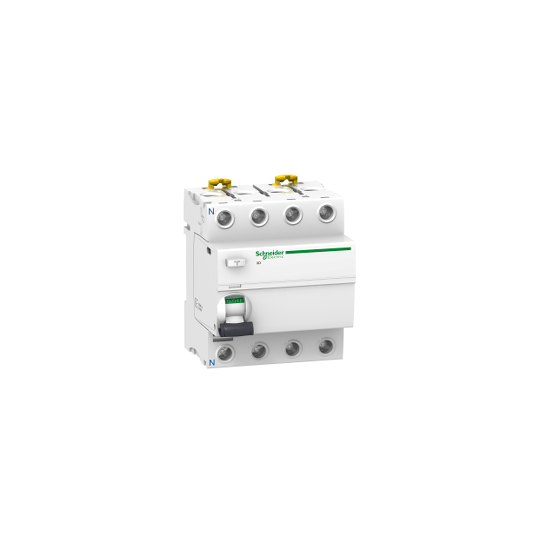

Schneider Electric SCHNEIDER Acti9 iID - RCCB - 4P - 25A - 300mA - type A - A9R04425
Schneider Electric SCHNEIDER Acti9 iID - RCCB - 4P - 25A - 300mA - type A - A9R04425

Acti9 iID - RCCB - 4P - 25A - 300mA - type A - A9R04425

SKU : A9R04425

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 4P - 25A - 300mA - type A - A9R04425

DESCRIPTION

Standards: EN/IEC 61008-1
IP protection degree:
Pollution degree: 3
Electromagnetic compatibility: Impulse resistance 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature: -25?60 °C
Ambient temperature for storage: -40?85 °C
Range: Acti9
Product name: Acti 9 iID
Product or device type: Residual current circuit breaker
Device name: iID
Poles description: 4P
Neutral position: Left
Rated operational current In: 25 A
Network type: AC
Differential sensitivity: 300 mA
Differential protection time delay: Instantaneous
Differential protection class: Type A
Device position in installation: Outgoing
Network frequency: 50/60 Hz
Rated operational voltage [Ue]: 380...415 V AC 50/60 Hz
Differential technology: Voltage-independent
Rated making and breaking capacity:
Idm: 1500 A Im
Conditional short-circuit current: 10 kA
Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]: 6 kV
Fully visible break: Yes
Control type: Toggle
Installation mode: Clip-on
Mounting support: DIN rail
9 mm pitches: 8
Height: 91 mm
Width: 72 mm
Depth: 73.5 mm
Product weight: 0.37 kg
Color: White
Mechanical durability: 20000 cycles
Electrical durability:
Optional locking description: Padlockable device
Connection mode:
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N·m top or bottom
AC-1: 15000 cycles
Idm: 1500 A
Im: 1500 A
Code EAN: 3606480091605
