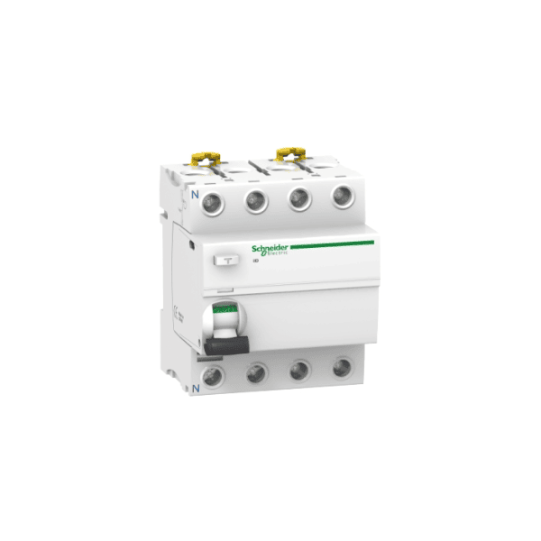

Schneider Electric SCHNEIDER Acti9 iID - RCCB - 4P - 40A - 30mA - type A - A9R01440
Schneider Electric SCHNEIDER Acti9 iID - RCCB - 4P - 40A - 30mA - type A - A9R01440

Acti9 iID - RCCB - 4P - 40A - 30mA - type A - A9R01440

SKU : A9R01440

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 4P - 40A - 30mA - type A - A9R01440

DESCRIPTION

Standards: EN/IEC 61008-1
IP protection degree:
Pollution degree: 3
Electromagnetic compatibility: Impulse withstand 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature: -25?60 °C
Storage temperature: -40?85 °C
Range: Acti9
Product name: Acti 9 iID
Product type or equipment: Differential switch
Device name: iID
Pole description: 4P
Neutral pole position: Left
Assigned operating current (In): 40 A
Network type: AC
Differential sensitivity: 30 mA
Differential protection delay: Instantaneous
Differential protection class: Type A
Device position in the installation: Departure
Network frequency: 2 phases
[Ue] Assigned operating voltage: 380...415 V AC 2 phases
Differential technology: Voltage independent
Rated breaking and making capacity:
Idm: 1500 A Im
Conditional short-circuit current: 10 kA
[Ui] Rated insulation voltage: 500 V AC 2 phases
[Uimp] Rated impulse withstand voltage: 6 kV
Peak current: 250 A
Fully visible breaking: Regulated switching mode
Control type: By toggle
Installation mode: Snap-on
Mounting support: Direct mounting on locking rods
Pitch of 9 mm: 8
Height: 91 mm
Width: 72 mm
Depth: 73.5 mm
Product weight: 0.37 kg
Color: White
Mechanical life span: 20000 cycles
Electrical life span:
Optional locking: Padlock device
Connection mode:
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
AC-1: 15000 cycles
Idm: 1500 A
Im: 1500 A
Code EAN: 3606480091629
