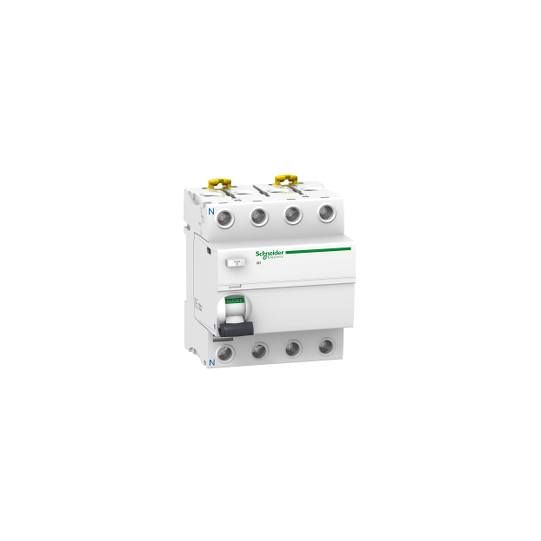

Schneider Electric SCHNEIDER Acti9 iID - RCCB - 4P - 63A - 300mA - type A - A9R04463
Schneider Electric SCHNEIDER Acti9 iID - RCCB - 4P - 63A - 300mA - type A - A9R04463

Acti9 iID - RCCB - 4P - 63A - 300mA - type A - A9R04463

SKU : A9R04463

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 4P - 63A - 300mA - type A - A9R04463

DESCRIPTION

Standards: EN/IEC 61008-1
IP protection degree:
Pollution degree: 3
Electromagnetic compatibility: Impulse resistance 8/20 µs, 250 A in accordance with EN/IEC 61008-1
Operating temperature: -25?60 °C
Ambient temperature for storage: -40?85 °C
Series: Acti9
Product Name: Acti 9 iID
Product or Equipment Type: Residual Current Circuit Breaker
Device Name: iID
Poles Description: 4P
Neutral Pole Position: Left
Nominal Rated Current: 63 A
Network Type: AC
Residual Current Sensitivity: 300 mA
Differential Protection Time Delay: Instantaneous
Type of Differential Protection: Type A
Device Position in the Installation: Start
Network Frequency: 50/60 Hz
[Ue] Nominal Rated Voltage: 380...415 V AC 50/60 Hz
Residual Current Technology: Voltage Independent
Nominal Making and Breaking Capacity:
Idm: 1500 A Im
Nominal Short-Circuit Withstand Current: 10 kA
[Ui] Rated Insulation Voltage: 500 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage: 6 kV
Visible Break Capacity: Yes
Control Type: Rocker Switch
Installation Mode: Snap-In
Mounting Support: DIN Rail
9 mm Pitch: 8
Height: 91 mm
Width: 72 mm
Depth: 73.5 mm
Product Weight: 0.37 kg
Color: White
Mechanical Life: 20,000 cycles
Electrical Life:
Optional Locking Devices: Padlockable
Connection Mode:
Wire Stripping Length: 14 mm for Top or Bottom Connection
Torque: 3.5 N.m Top or Bottom
AC-1: 15,000 cycles
Idm: 1500 A
Im: 1500 A
Code EAN: 3606480091667
