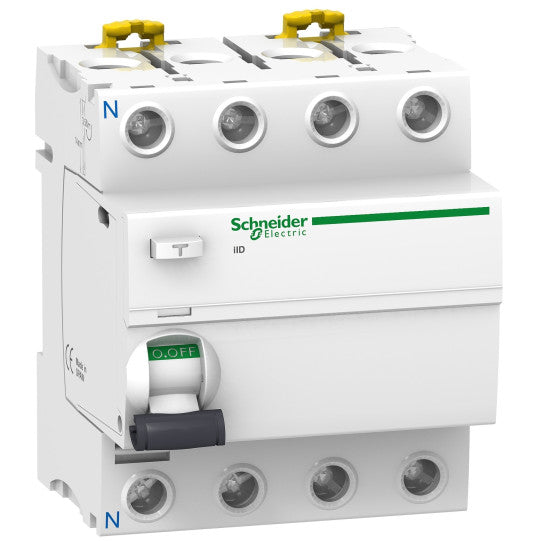

Schneider Electric Acti 9 Acti9 iID - RCCB - 4P - 80A - 300mA - type AC - A9R14480
Schneider Electric Acti 9 Acti9 iID - RCCB - 4P - 80A - 300mA - type AC - A9R14480

Acti9 iID - RCCB - 4P - 80A - 300mA - type AC - A9R14480

SKU : A9R14480

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iID - RCCB - 4P - 80A - 300mA - type AC - A9R14480

DESCRIPTION

Range of product: IID
Range: Acti 9
Product name: Acti 9 iID
Product or component type: Residual current circuit breaker (RCCB)
Device short name: IID
Poles description: 4P
Neutral position: Left
[In] rated current: 80 A
Network type: AC
Earth-leakage sensitivity: 300 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Device location in system: Outgoer
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 380...415 V AC 50/60 Hz
Residual current tripping technology: Voltage independent
Rated breaking and making capacity: Idm 1500 AIm 1500 A
Rated conditional short-circuit current: 10 kA
[Ui] rated insulation voltage: 500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 6 kV
Contact position indicator: Yes
Control type: Toggle
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top or bottom: tooth
9 mm pitches: 8
Height: 91 mm
Width: 72 mm
Depth: 73.5 mm
Product weight: 0.37 kg
Colour: White
Mechanical durability: 20000 cycles
Electrical durability: AC-1: 10000 cycles
Locking options description: Padlocking device
Connections - terminals: Single terminal top or bottom 1...35 mm² rigidSingle terminal top or bottom 1...25 mm² flexibleSingle terminal top or bottom 1...25 mm² flexible with ferrule
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m top or bottom
Market segment: Small commercial
Compatibility code: IID
Standards: EN/IEC 61008-1
Product certifications: SNI
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 3
Electromagnetic compatibility: 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606480089398
