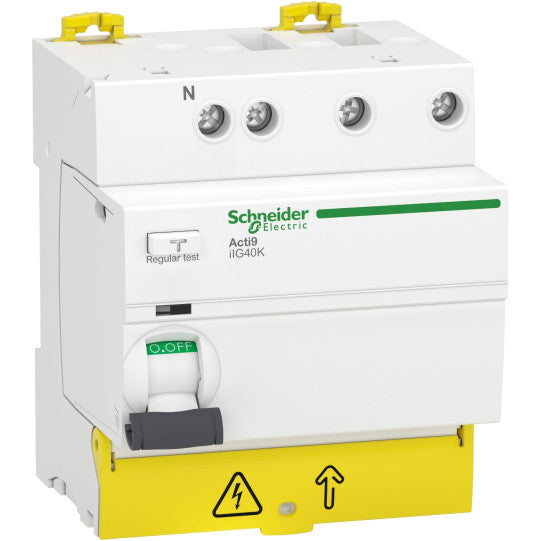

Schneider Electric Acti9 Acti9 iIG40K - residual current circuit breaker - 3P+N - 40A - 300mA - type AC - A9R79740
Schneider Electric Acti9 Acti9 iIG40K - residual current circuit breaker - 3P+N - 40A - 300mA - type AC - A9R79740

Acti9 iIG40K - residual current circuit breaker - 3P+N - 40A - 300mA - type AC - A9R79740

SKU : A9R79740

Contact us for price and lead time for this product. Our team will respond quickly.

Lead time: 2–3 weeks – Ships quickly after order confirmation



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

REQUEST A QUOTE
Estimated Delivery : - .

Acti9 iIG40K - residual current circuit breaker - 3P+N - 40A - 300mA - type AC - A9R79740

DESCRIPTION

Range: Acti9
Product name: Acti9 iIG40K
Product or component type: Residual current circuit breaker (RCCB)
Device short name: IIG40K
Poles description: 3P + N
Neutral position: Left
[In] rated current: 40 A
Network type: AC
Earth-leakage sensitivity: 300 mA
Earth-leakage protection time delay: Instantaneous
Earth-leakage protection class: Type AC
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Quality labels: NF
Device location in system: Group incomer
Network frequency: 50 Hz
[Ue] rated operational voltage: 380...415 V AC 50 Hz
Residual current tripping technology: Voltage independent
Rated breaking and making capacity: Idm 500 A
Rated conditional short-circuit current: 4500 A
[Ui] rated insulation voltage: 440 V AC 50 Hz
[Uimp] rated impulse withstand voltage: 4 kV
Contact position indicator: Yes
Control type: Toggle
Mounting mode: Clip-on
Mounting support: DIN rail
Comb busbar and distribution block compatibility: Top: tooth
9 mm pitches: 8
Height: 85 mm
Width: 72 mm
Depth: 74 mm
Product weight: 322 g
Colour: White
Mechanical durability: 5000 cycles
Electrical durability: 2000 cycles
Locking options description: Padlocking device
Connections - terminals: Tunnel type terminals bottom 1...35 mm² rigidTunnel type terminals bottom 1...25 mm² flexibleTunnel type terminals top 1...16 mm² rigidTunnel type terminals top 1...10 mm² flexible
Wire stripping length: 14 mm for top or bottom connection
Tightening torque: 3.5 N.m bottom2 N.m top
Standards: EN/IEC 61008-2-1
Product certifications: CE
IP degree of protection: IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Pollution degree: 2
Electromagnetic compatibility: 8/20 µs impulse withstand, 200 A conforming to EN/IEC 61008-2-1
Relative humidity: 95 % at 55 °C
Operating altitude: 2000 m
Ambient air temperature for operation: -5...60 °C
Ambient air temperature for storage: -40...85 °C
Sustainable offer status: Green Premium productREACh Regulation
Code EAN: 3606485461991
